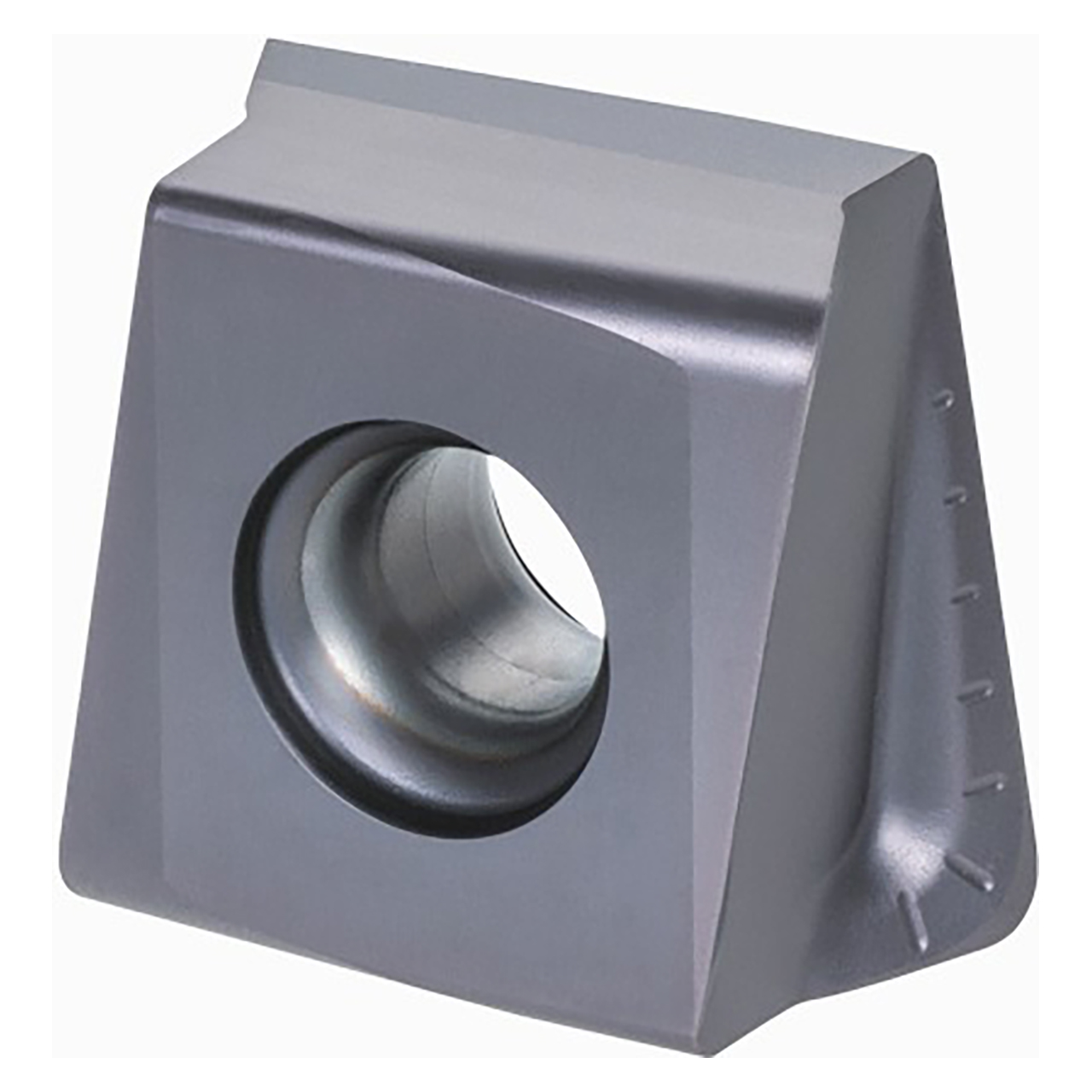

Tungaloy 6860073 | LMMU160932PNER-MJ AH120 0.661" Thickness x 0.126" Radius TiAlN Coated Carbide Milling Insert

$37.10 $30.79
(You save $6.31)
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH120
Finish/Coating:
TiAlN
Width (Inch):
3/8"
Width (Decimal Inch):
0.3740"
Width (mm):
9.50mm
Thickness (Inch):
21/32"
Thickness (Decimal Inch):
0.6610"
Thickness (mm):
16.79mm
interval quantity:
10
SKU:
23022790
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping

Double sided tangential insert with chipbreaker and highly toughness cutting edges.


Product Specifications
# MFG6860073
Corner Radius (Inch)0.126"
Depth of Cut Maximum (Inch)0.594"
Insert Thickness (Inch)0.661"
Insert Width (Inch)0.374"
Maximum Feed per Tooth0.0118"/tooth
Minimum Feed per Tooth0.005"/tooth
Number of Cutting Edges4
ApplicationShoulder Milling
CoatingTiAlN
Body MaterialCarbide
GradeAH120
Cutting Edge MaterialCarbide
Applicable MaterialSteel, Stainless Steel, Cast Iron, Hard Materials, Hi Temp Alloys
