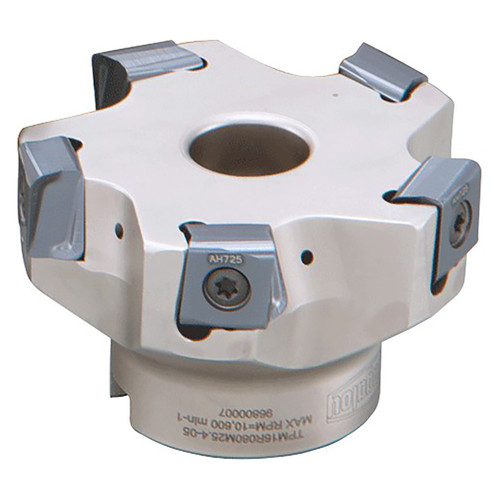

Square shoulder mills with tangential clamped insert with 4 edges.
| Manufacturer Part Number | 6860075 |
| Cutting Diameter (mm) | 80mm |
| Cutting Diameter Maximum (mm) | 80mm |
| Depth of Cut Maximum (mm) | 15.1mm |
| Overall Length (mm) | 50mm |
| Functional Length (mm) | 50mm |
| Connection Diameter Machine Side (mm) | 25.4mm |
| Cutting Item Count | 5 |
| Cutting Direction (HAND) | Right Hand |
| Body Material | Steel |
| Application | Shoulder Milling |
| Tool Type | 90 Facemills |
