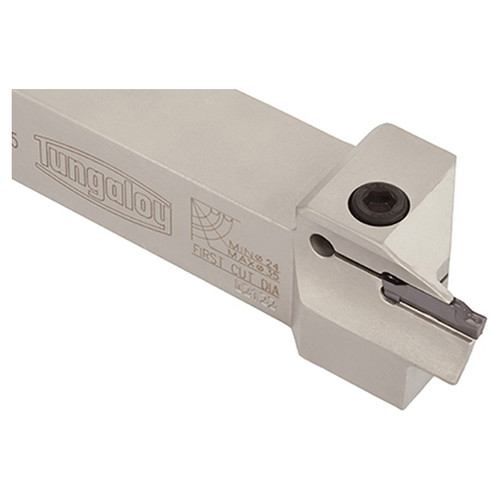

Toolholders for deep face grooving & turning.
Product Specifications
| # MFG | 6860538 |
| Cutting Width (mm) | 4mm |
| Functional Width (mm) | 25.6mm |
| Head Length (mm) | 39mm |
| Minimum Bore Diameter (mm) | 62mm |
| Overall Length (mm) | 150mm |
| Shank Height (mm) | 25mm |
| Shank Width (mm) | 25mm |
| Maximum Work Piece Parting Diameter (mm) | 120mm |
| Body Material | Steel |
| Application | Face Grooving |
| Tool Type | Face Turning & Grooving Tools |
| Cutting Direction | Left Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Toolholder Type:
Face Grooving
Overall Length (Inch):
5-29/32"
Overall Length (Decimal Inch):
5.9100"
Overall Length (mm):
150.00mm
Shank Height (Inch):
63/64"
Shank Height (Decimal Inch):
0.9800"
Shank Height (mm):
25.00mm
Shank Width (Inch):
63/64"
Shank Width (Decimal Inch):
0.9800"
Shank Width (mm):
25.00mm
interval quantity:
1
