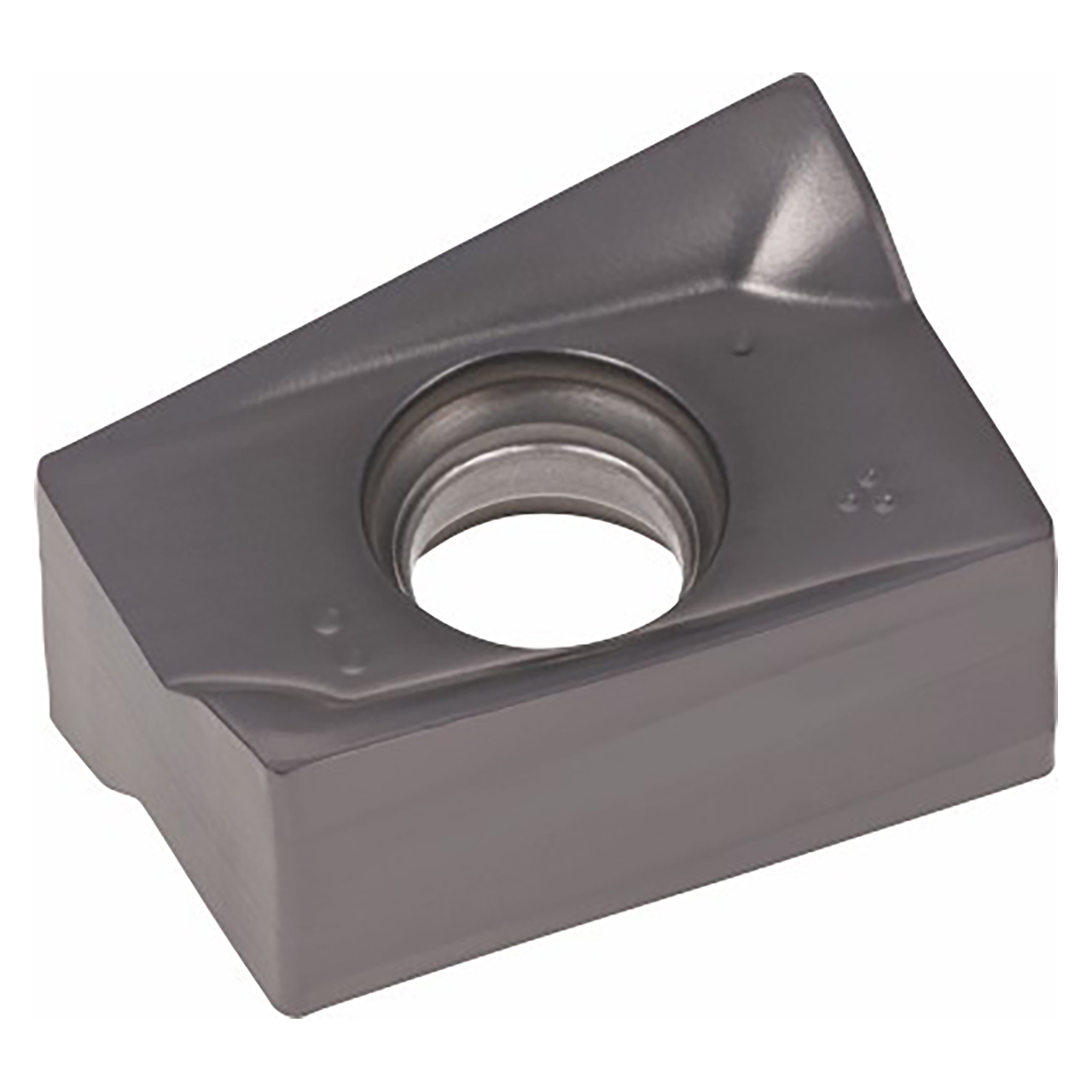

Tungaloy 6861249 | LQMU180824PNER-MJ AH120 0.453" Diameter x 0.429" Thickness x 0.095" Radius TiAlN Coated Carbide Milling Insert

$30.85 $25.61
(You save $5.24)
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH120
Finish/Coating:
TiAlN
Width (Inch):
29/64"
Width (Decimal Inch):
0.4530"
Width (mm):
11.51mm
Inscribed Circle (Inch):
29/64"
Inscribed Circle (Decimal Inch):
0.4530"
Inscribed Circle (mm):
11.51mm
Thickness (Inch):
27/64"
Thickness (Decimal Inch):
0.4290"
Thickness (mm):
10.90mm
interval quantity:
10
SKU:
23022874
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping

Double sided insert with chipbreaker and sharp cutting edges.


Product Specifications
# MFG6861249
Cutting Edge Effective Length (Inch)0.689"
Corner Radius (Inch)0.0945"
Depth of Cut Maximum (Inch)0.63"
Inscribed Circle Diameter (Inch)0.453"
Insert Thickness (Inch)0.429"
Insert Width (Inch)0.453"
Maximum Feed per Tooth0.0079"/tooth
Minimum Feed per Tooth0.004"/tooth
Number of Cutting Edges4
ApplicationShoulder Milling
CoatingTiAlN
Body MaterialCarbide
GradeAH120
Cutting Edge MaterialCarbide
Applicable MaterialSteel, Stainless Steel, Cast Iron, Hard Materials, Hi Temp Alloys
