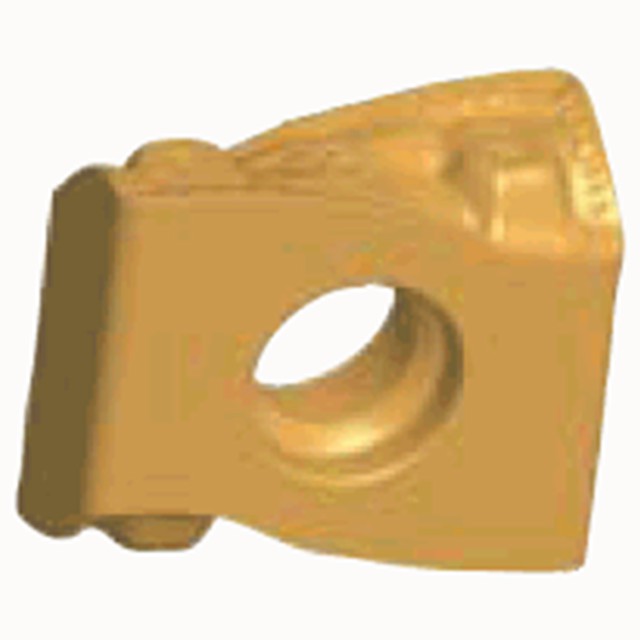

Insert for steel cutting.
| Manufacturer Part Number | 6861493 |
| Corner Radius (Inch) | 0.063" |
| Cutting Edge Length (Inch) | 0.945" |
| Maximum Depth of Cut (Inch) | 0.5906" |
| Insert Thickness (Inch) | 0.807" |
| Maximum Turning Feed (Inch) | 0.0393"/rev |
| Minimum Depth of Cut (Inch) | 0.1574" |
| Minimum Turning Feed (Inch) | 0.0118"/rev |
| Coating | TiCN+Al2O3+TiN |
| Cutting Edge Material | Carbide |
| Grade | T9115 |
| Tool Type | Turn Negative Inserts |
| Applicable Material | Steel |
| Chip Breaker Type | TDR-R16 |
| Body Material | Carbide |
