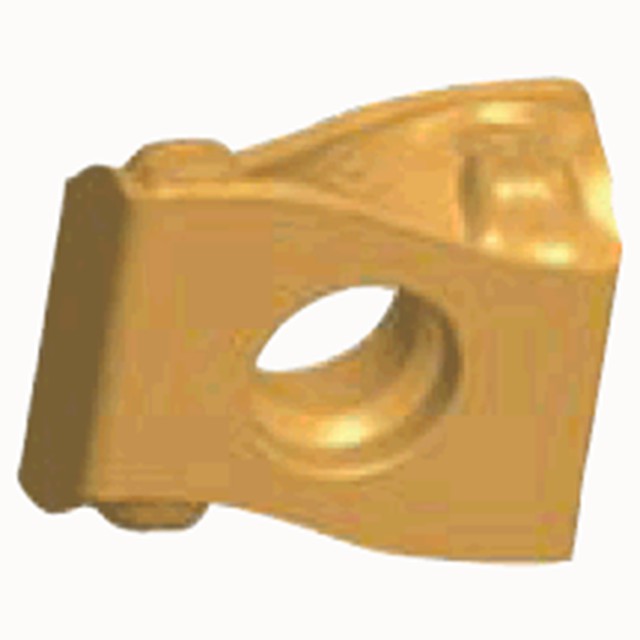

Tungaloy 6861536 | LNMX160608R-MDR AH725 0.531" Thickness x 0.031" Radius TiAlN Coated Carbide Indexable Turning Insert

$24.85 $16.15
(You save $8.70)
Brand:
Tungaloy
Material:
Carbide
Thickness (Inch):
17/32"
Thickness (Decimal Inch):
0.5310"
Thickness (mm):
13.49mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0310"
Corner Radius (mm):
0.79mm
interval quantity:
10
SKU:
23022831
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Related Products

Insert for stainless steel cutting.


Product Specifications
Manufacturer Part Number6861536
Corner Radius (Inch)0.031"
Cutting Edge Length (Inch)0.638"
Maximum Depth of Cut (Inch)0.2362"
Insert Thickness (Inch)0.531"
Maximum Turning Feed (Inch)0.0196"/rev
Minimum Depth of Cut (Inch)0.059"
Minimum Turning Feed (Inch)0.0039"/rev
CoatingTiAlN
Cutting Edge MaterialCarbide
GradeAH725
Tool TypeTurn Negative Inserts
Applicable MaterialSteel, Stainless Steel, Cast Iron, Hi Temp Alloys
Chip Breaker TypeMDR-R08
Body MaterialCarbide
