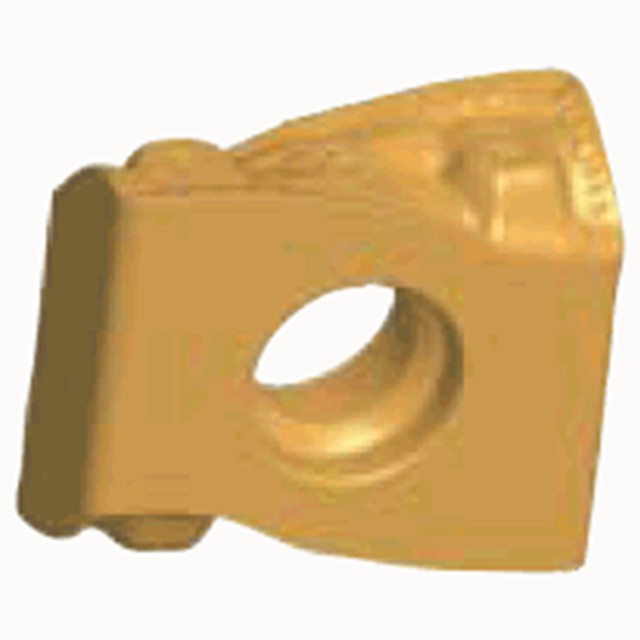

Tungaloy 6861559 | LNMX160616R-TDR T9125 0.531" Thickness x 0.063" Radius TiCN+Al2O3+TiN Coated Carbide Indexable Turning Insert

$24.85 $16.15
(You save $8.70)
Brand:
Tungaloy
Material:
Carbide
Thickness (Inch):
17/32"
Thickness (Decimal Inch):
0.5310"
Thickness (mm):
13.49mm
Corner Radius (Inch):
1/16"
Corner Radius (Decimal Inch):
0.0630"
Corner Radius (mm):
1.60mm
interval quantity:
10
SKU:
23022846
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Related Products

Insert for steel cutting.


Product Specifications
Manufacturer Part Number6861559
Corner Radius (Inch)0.063"
Cutting Edge Length (Inch)0.638"
Maximum Depth of Cut (Inch)0.315"
Insert Thickness (Inch)0.531"
Maximum Turning Feed (Inch)0.0393"/rev
Minimum Depth of Cut (Inch)0.0393"
Minimum Turning Feed (Inch)0.0118"/rev
CoatingTiCN+Al2O3+TiN
Cutting Edge MaterialCarbide
GradeT9125
Tool TypeTurn Negative Inserts
Applicable MaterialSteel
Chip Breaker TypeTDR-R16
Body MaterialCarbide
