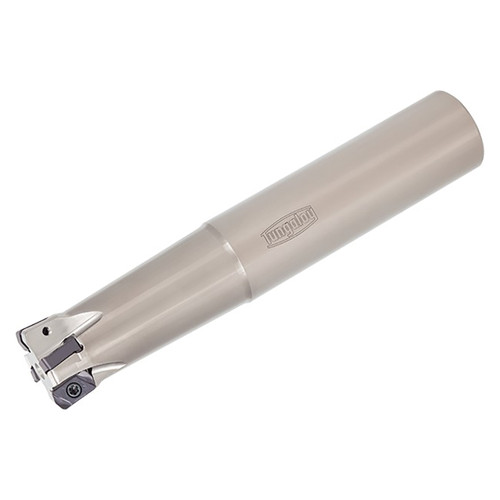

Super high feed milling endmills with double sided inserts with 4 edges (Center-through coolant).
Product Specifications
| # MFG | 6862534 |
| Connection Diameter Machine Side (mm) | 20mm |
| Cutting Diameter (mm) | 22mm |
| Cutting Item Count | 4 |
| Maximum Cutting Diameter (mm) | 22mm |
| Maximum Depth of Cut (mm) | 1mm |
| Functional Length (mm) | 130mm |
| Head Length (mm) | 50mm |
| Overall Length (mm) | 130mm |
| Shank Length (mm) | 80mm |
| Shank Type | Round |
| Tool Cutting Edge Angle (Degree) | 17 Degree |
| Body Material | Steel |
| Application | Face Milling, High Feed Milling |
| Tool Type | Fast Feed Endmill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (mm):
22.00mm
Body Material:
Steel
Maximum Depth of Cut (mm):
1.00mm
Head Length (mm):
50.00mm
Overall Length (mm):
130.00mm
Shank Length (mm):
80.00mm
Shank Type:
Round
interval quantity:
1
