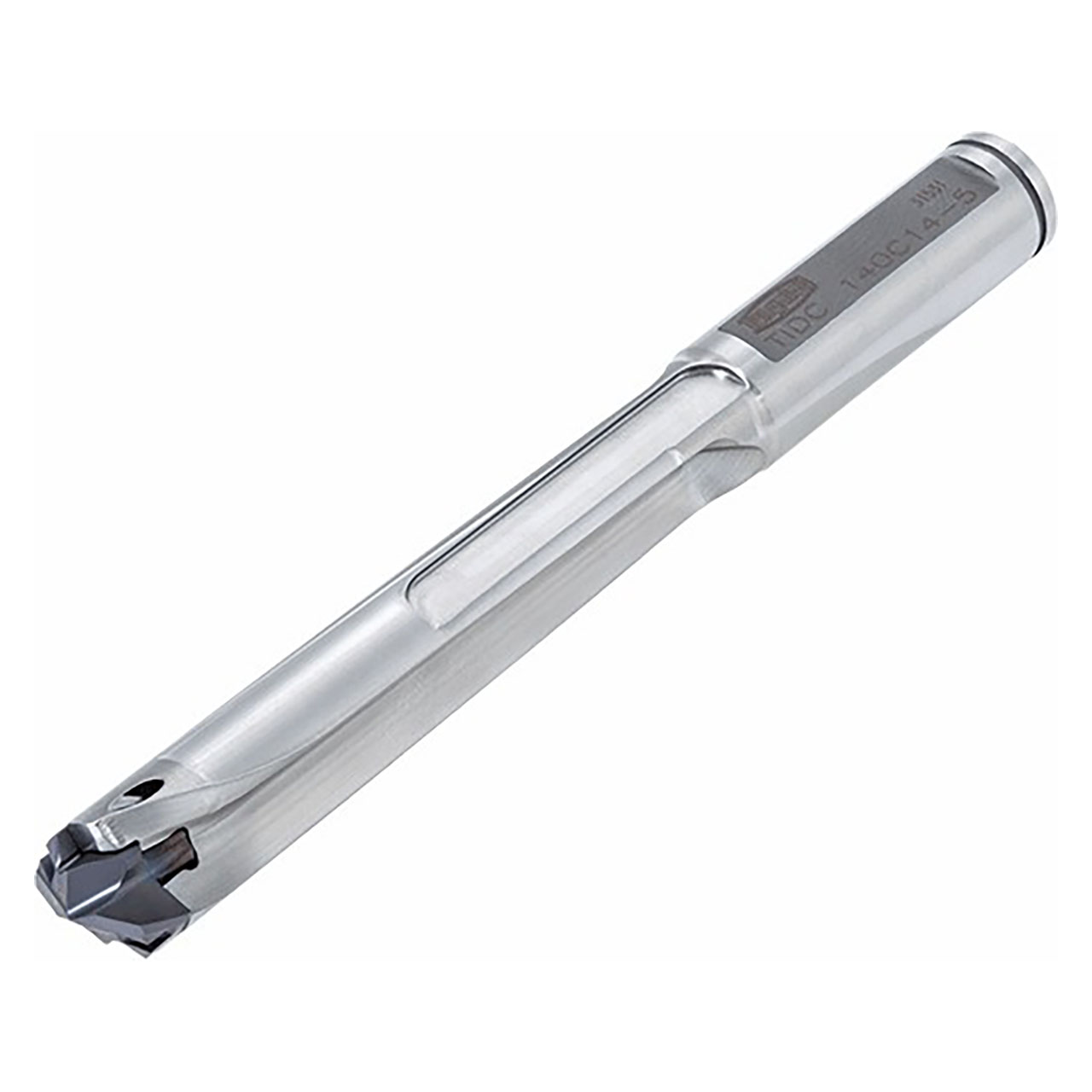

"DrillMeister" indexable head drill with flanged shank.
Product Specifications
| Cutting Diameter Maximum (Inch) | 0.5276" |
| Cutting Diameter Minimum (Inch) | 0.5118" |
| Connection Diameter Machine Side (Inch) | 5/8" |
| Overall Length (Inch) | 5.055" |
| Point Length (Inch) | 0.083" |
| Shank Length (Inch)) | 1.89" |
| Shank Length (mm) | 4.509" |
| Insert Seat Size Code (SSC) | 14 |
| Coolant Supply Property (CSP) | Through Hole |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (Decimal Inch):
0.5276"
Minimum Cutting Diameter (Decimal Inch):
0.5118"
Body Material:
Steel
Overall Length (Decimal Inch):
5.0550"
Point Length (Decimal Inch):
0.0770"
Shank Length (Decimal Inch):
1.8500"
Usable Length (Decimal Inch):
2.6380"
interval quantity:
1
