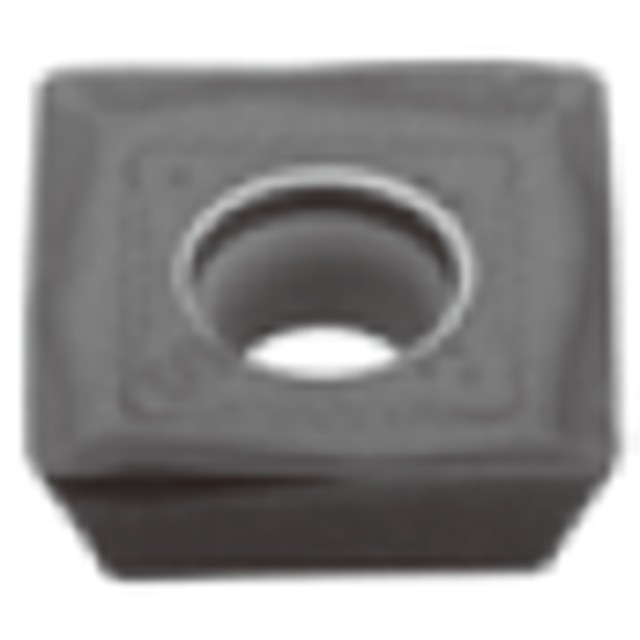

Tungaloy 6863135 | SWMT1304PDPR-MS AH130 13.59mm Diameter x 5.00mm Thickness x 0.81mm Radius TiAlN Coated Carbide Milling Insert

$19.75 $16.39
(You save $3.36)
Brand:
Tungaloy
Finish/Coating:
TiAlN
Material:
Carbide
Inscribed Circle (Decimal Inch):
0.5350"
Thickness (Decimal Inch):
0.1970"
Width (Decimal Inch):
0.5350"
interval quantity:
10
SKU:
23024152
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Suitable for stainless steel shoulder milling.


Product Specifications
Manufacturer Part Number6863135
Cutting Edge Effective Length (Inch)0.535"
Corner Radius (Inch)0.0315"
Depth of Cut Maximum (Inch)0.394"
Inscribed Circle Diameter (Inch)0.535"
Insert Thickness (Inch)0.197"
Insert Width (Inch)0.535"
Maximum Feed per Tooth0.0071"/tooth
Minimum Feed per Tooth0.002"/tooth
Number of Cutting Edges4
Wiper Edge Length0.055"
ApplicationShoulder Milling
CoatingTiAlN
Body MaterialCarbide
GradeAH130
Cutting Edge MaterialCarbide
Applicable MaterialSteel, Stainless Steel
