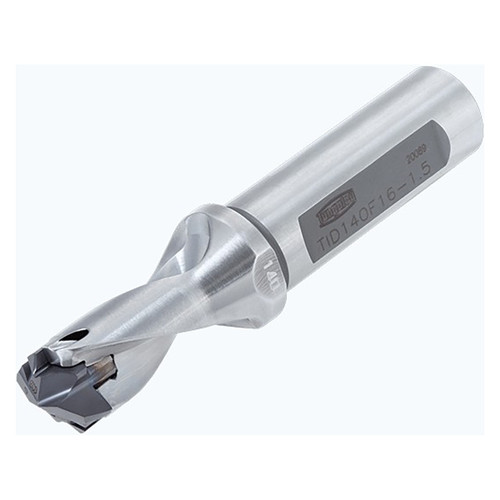

"DrillMeister" indexable head drill with flanged shank.
Product Specifications
| Cutting Diameter Maximum (Inch) | 0.508" |
| Cutting Diameter Minimum (Inch) | 0.472" |
| Flange Diameter (Inch) | 0.787" |
| Connection Diameter Machine Side (mm) | 12 mm |
| Overall Length (Inch) | 3.268" |
| Point Length (mm) | 1.09 mm |
| Shank Length (mm) | 45 mm |
| Usable Length (mm) | 31 mm |
| Insert Seat Size Code (SSC) | 6 |
| Coolant Supply Property (CSP) | Through Hole |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (Decimal Inch):
0.5080"
Minimum Cutting Diameter (Decimal Inch):
0.4720"
Flange Diameter (Decimal Inch):
0.7870"
Body Material:
Steel
Overall Length (Decimal Inch):
3.2680"
Point Length (Decimal Inch):
0.0720"
Shank Length (Decimal Inch):
1.8900"
Usable Length (Decimal Inch):
0.7950"
