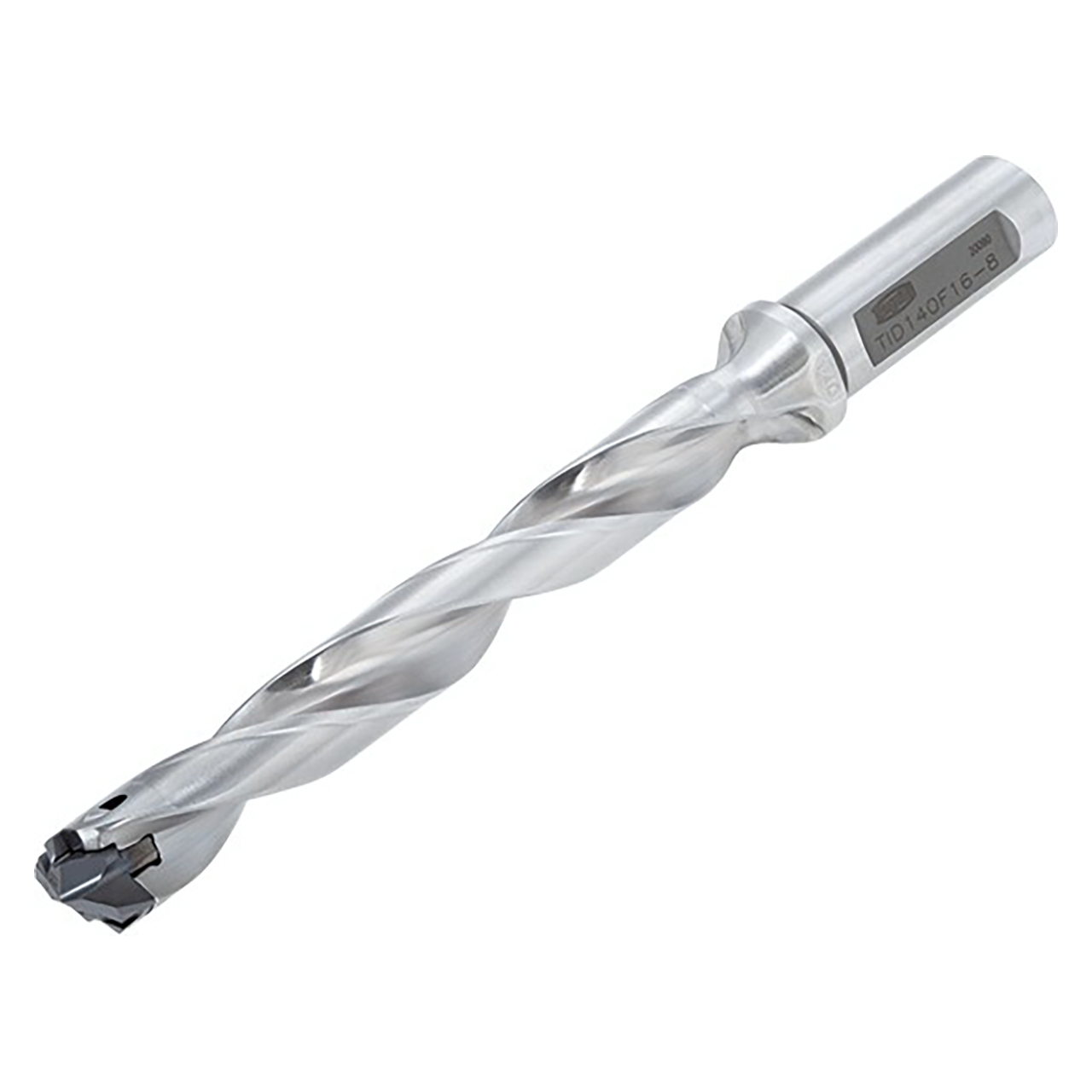

"DrillMeister" exchangeable head drill with cylindrical shank (For external coolant supply).
| Cutting Diameter Maximum (Inch) | 0.469" |
| Cutting Diameter Minimum (Inch) | 0.453" |
| Flange Diameter (Inch) | 0.787" |
| Connection Diameter Machine Side (mm) | 14 mm |
| Overall Length (Inch) | 6.165" |
| Point Length (mm) | 1.96 mm |
| Shank Length (mm) | 65 mm |
| Usable Length (mm) | 27.4 mm |
| Insert Seat Size Code (SSC) | 13 |
| Application | General Drilling |
