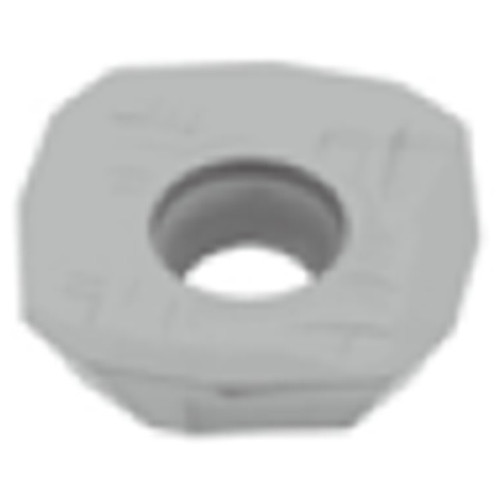

Tungaloy 6863807 | SWMT13T3AFPR-HJ T1115 0.579" Diameter x 0.157" Thickness x 0.059" Radius TiCN+Al2O3+TiN Coated Carbide Milling Insert

$15.68 $13.01
(You save $2.67)
Brand:
Tungaloy
Material:
Carbide
Finish/Coating:
TiCN+Al2O3+TiN
Width (Inch):
37/64"
Width (Decimal Inch):
0.5790"
Width (mm):
14.71mm
Inscribed Circle (Inch):
37/64"
Inscribed Circle (Decimal Inch):
0.5790"
Inscribed Circle (mm):
14.71mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1570"
Thickness (mm):
3.99mm
SKU:
23138520
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Applicable for super high feed milling.


Product Specifications
Manufacturer Part Number6863807
Corner Radius (Inch)0.059"
Depth of Cut Maximum (Inch)0.079"
Inscribed Circle Diameter (Inch)0.579"
Insert Thickness (Inch)0.157"
Insert Width (Inch)0.579"
Maximum Feed per Tooth0.0236"/tooth
Minimum Feed per Tooth0.0079"/tooth
Number of Cutting Edges4
Wiper Edge Length0.091"
ApplicationFace Milling
CoatingTiCN+Al2O3+TiN
Body MaterialCarbide
GradeT1115
Cutting Edge MaterialCarbide
Applicable MaterialSteel
