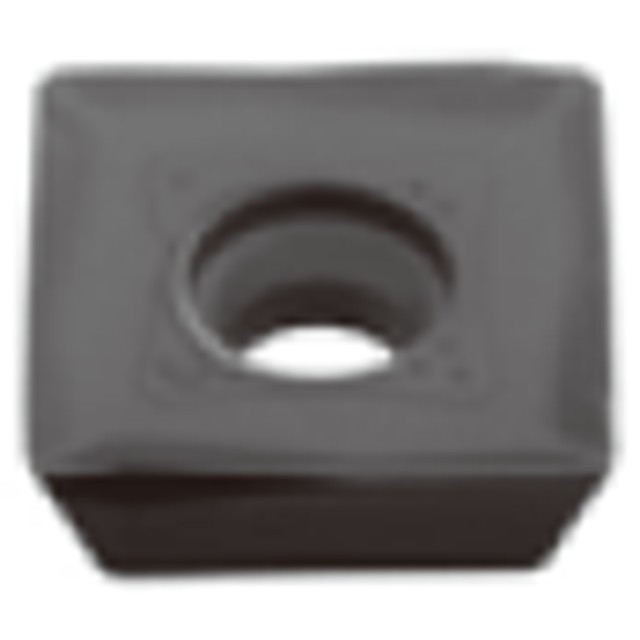

For general purpose. Sharp edge provides low cutting force.
Product Specifications
| Manufacturer Part Number | 6863808 |
| Cutting Edge Effective Length (Inch) | 0.535" |
| Corner Radius (Inch) | 0.0315" |
| Depth of Cut Maximum (Inch) | 0.394" |
| Inscribed Circle Diameter (Inch) | 0.535" |
| Insert Thickness (Inch) | 0.197" |
| Insert Width (Inch) | 0.535" |
| Maximum Feed per Tooth | 0.0079"/tooth |
| Minimum Feed per Tooth | 0.002"/tooth |
| Number of Cutting Edges | 4 |
| Wiper Edge Length | 0.055" |
| Application | Shoulder Milling |
| Coating | TiCN+Al2O3+TiN |
| Body Material | Carbide |
| Grade | T1115 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
T1115
Finish/Coating:
TiCN+Al2O3+TiN
Width (Inch):
17/32"
Width (Decimal Inch):
0.5350"
Width (mm):
13.59mm
Inscribed Circle (Inch):
17/32"
Inscribed Circle (Decimal Inch):
0.5350"
Inscribed Circle (mm):
13.59mm
Thickness (Inch):
13/64"
Thickness (Decimal Inch):
0.1970"
Thickness (mm):
5.00mm
