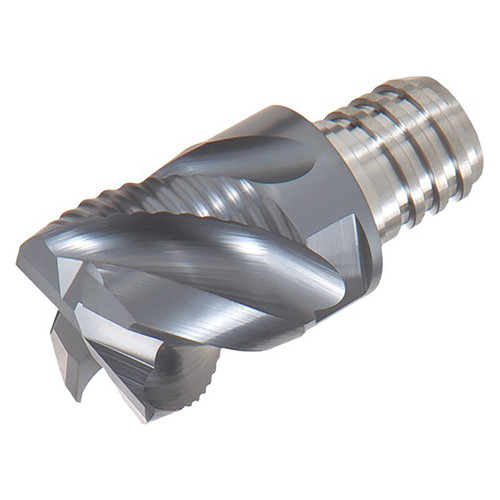

Square, 4 flutes, roughing-semi finishing, roughing and finishing edge combination.
Product Specifications
| Manufacturer Part Number | 6863906 |
| Cutting Diameter Maximum (Inch) | 3/8" |
| Cutting Diameter (Inch) | 3/8" |
| Depth of Cut Maximum (Inch) | 0.275" |
| Functional Length (Inch) | 0.51" |
| Maximum Feed per Tooth (fz) | 0.005"/tooth |
| Grade | AH725 |
| Flute Helix Angle (Degree) | 45 Degree |
| Number of Flutes | 4 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Body Material | Carbide |
| Coating | TiAlN |
| Cutting Edge Material | Carbide |
| Tool Type | Solid Carbide Center Cutting Endmills 90 |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
| Application | Shoulder Milling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Number of Flutes:
4
Material:
Carbide
Finish/Coating:
TiAlN
Application:
Shoulder Milling
Helix Angle:
45 Degree
interval quantity:
2
