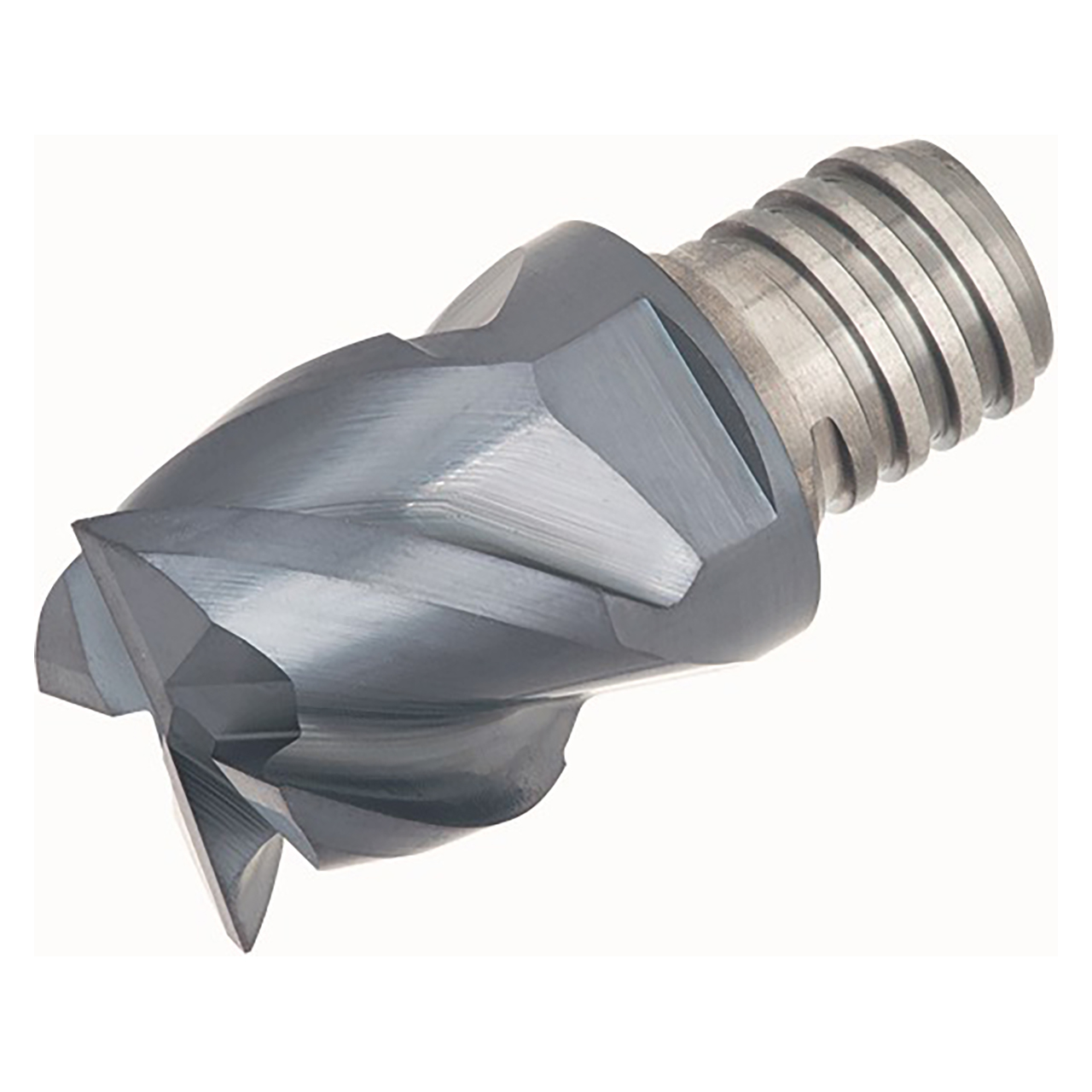

Square, 4 flutes, roughing-finishing, general.
Product Specifications
| Manufacturer Part Number | 6864021 |
| Cutting Diameter Maximum (Inch) | 3/8" |
| Cutting Diameter (Inch) | 3/8" |
| Depth of Cut Maximum (Inch) | 0.275" |
| Functional Length (Inch) | 0.512" |
| Corner Radius (Inch) | 0.062" |
| Maximum Feed per Tooth (fz) | 0.0047"/tooth |
| Grade | AH725 |
| Flute Helix Angle (Degree) | 45 Degree |
| Number of Flutes | 4 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Body Material | Carbide |
| Coating | TiAlN |
| Cutting Edge Material | Carbide |
| Tool Type | Solid Carbide Center Cutting Endmills 90 |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
| Application | Shoulder Milling |
