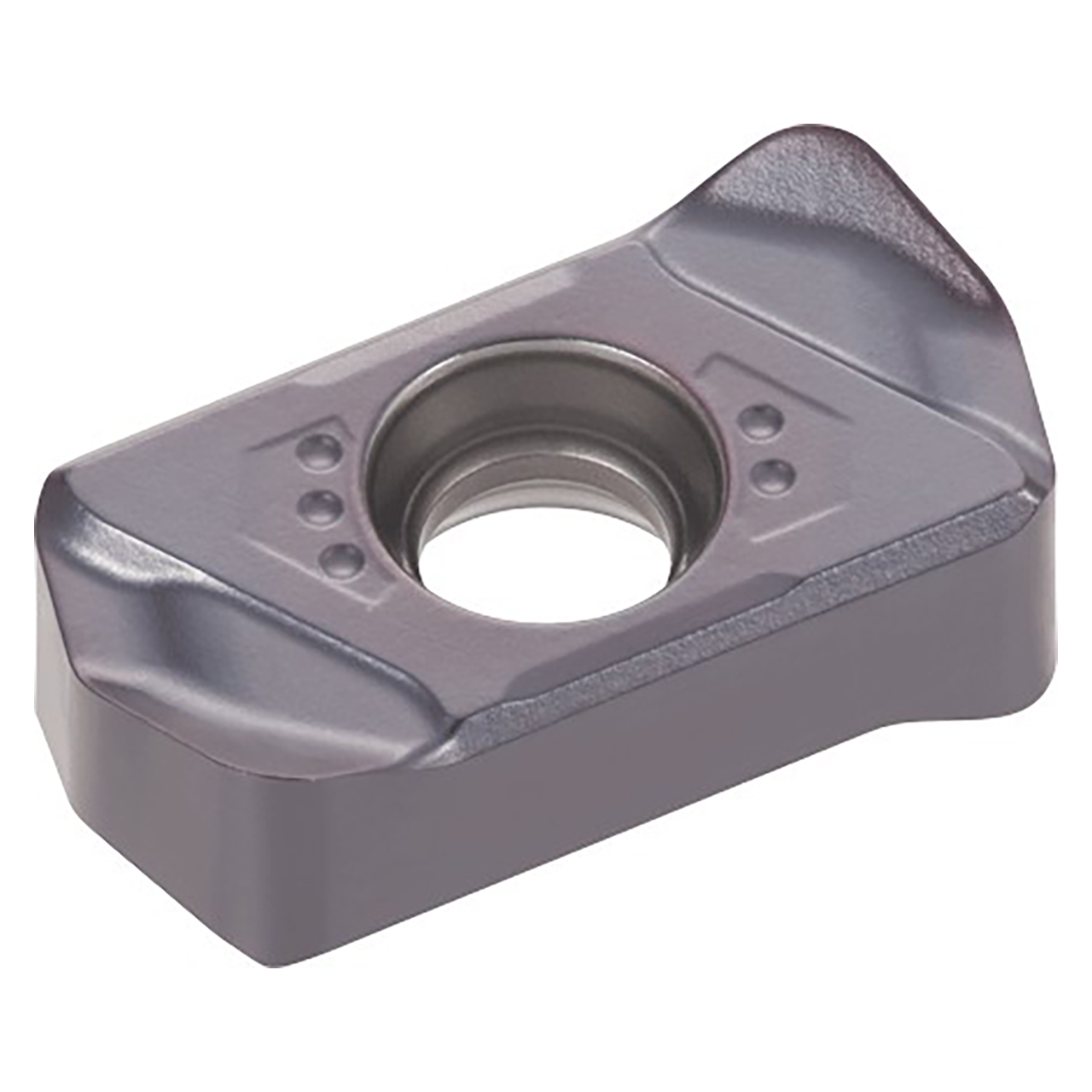

Double sided insert with 4 edges and ML chipbreaker.
| # MFG | 6864165 |
| Cutting Edge Effective Length (Inch) | 0.126" |
| Corner Radius (Inch) | 0.0472" |
| Depth of Cut Maximum (Inch) | 0.039" |
| Insert Thickness (Inch) | 0.169" |
| Insert Width (Inch) | 0.236" |
| Maximum Feed per Tooth | 0.0276"/tooth |
| Minimum Feed per Tooth | 0.0039"/tooth |
| Number of Cutting Edges | 4 |
| Application | Face Milling, High Feed Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH725 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
