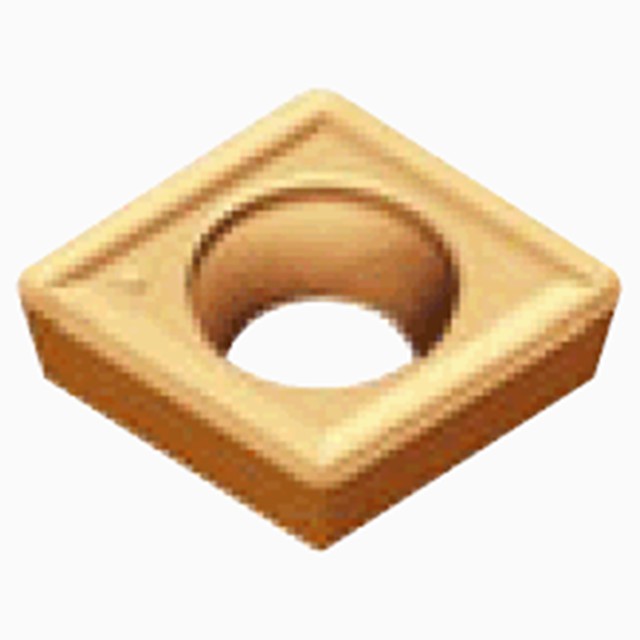

Tungaloy 6864294 | CPMT 32.51 CM T5115 3/8" Circle Diameter x 0.156" Thickness x 0.016" Radius TiCN+Al2O3+TiN Coated Carbide Indexable Turning Insert

$13.20 $9.24
(You save $3.96)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1560"
Thickness (mm):
3.96mm
Corner Radius (Decimal Inch):
0.0160"
Corner Radius (mm):
0.41mm
SKU:
23019632
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Positive 11 degree relief angle, M class, 80 degree rhombic insert, for multi-purpose cutting of grey and ductile cast iron.


Product Specifications
Manufacturer Part Number6864294
Corner Radius (Inch)0.016"
Cutting Edge Length (Inch)0.382"
Maximum Depth of Cut (Inch)0.0787"
Fixing Hole Diameter (Inch)0.173"
Inscribed Circle Diameter (Inch)3/8"
Insert Thickness (Inch)0.156"
Maximum Turning Feed (Inch)0.0078"/rev
Minimum Depth of Cut (Inch)0.0019"
Minimum Turning Feed (Inch)0.002"/rev
CoatingTiCN+Al2O3+TiN
Cutting Edge MaterialCarbide
GradeT5115
Tool TypeTurn Positive Inserts
Applicable MaterialCast Iron
Chip Breaker TypeCM
Major Clearance Angle11 Degree
Body MaterialCarbide
