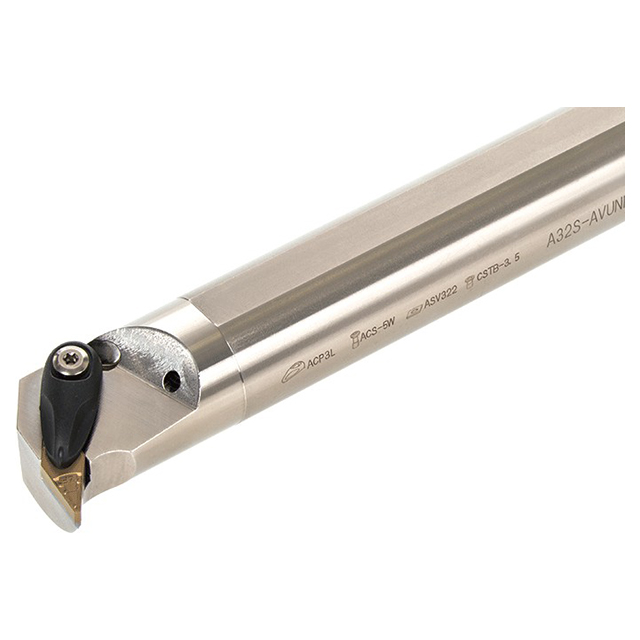

Double-clamp boring bar, for negative 35 degree rhombic inserts.
| # MFG | 6864375 |
| Connection Diameter Machine Side (Inch) | 1-1/4" |
| Functional Length (Inch) | 14" |
| Functional Width (Inch) | 0.859" |
| Head Length (Inch) | 1.96" |
| Minimum Bore Diameter (Inch) | 1.56" |
| Shank Height (Inch) | 1.18" |
| Body Material | Steel |
| Application | For 35 Degree Rhombic Insert |
| Tool Type | Internal Indexable-Turn Tool |
| Rake Angle Axial (Degree) | -6 Degree |
| Rake Angle Radial (Degree) | -10 Degree |
