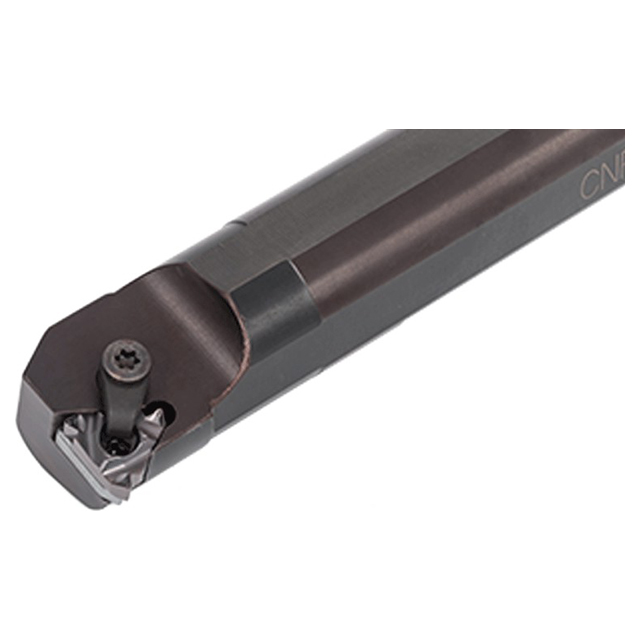

Tungaloy 6864471 | S20-CNR3DT 1.450" Minimum Bore Diameter x 1.188" Shank Height x 10.000" OAL Steel Right Hand Indexable Threading Toolholder

$475.55
Brand:
Tungaloy
Shank Width/Diameter (Inch):
1-7/32"
Shank Width/Diameter (Decimal Inch):
1.2190"
Shank Width/Diameter (mm):
254.00mm
Shank Height (Inch):
1-3/16"
Shank Height (Decimal Inch):
1.1880"
Shank Height (mm):
30.18mm
Overall Length (Decimal Inch):
10.0000"
Overall Length (mm):
254.00mm
interval quantity:
1
SKU:
23138538
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Internal threading bars, alternative clamping of screw-on or clamp-on (DT type only).


Product Specifications
Manufacturer Part Number6864471
Minimum Bore Diameter (Inch)1.450"
Shank Height (Inch)1.188"
Overall Length (Inch)10.000"
Shank Width (Inch)1.219"
Head Length (Inch)1.900"
Connection Diameter Machine Side (Inch)1-1/4"
Cutting DirectionRight Hand
Body MaterialSteel
Tool TypeInternal Indexable Threading Tools
ApplicationInternal Threading
