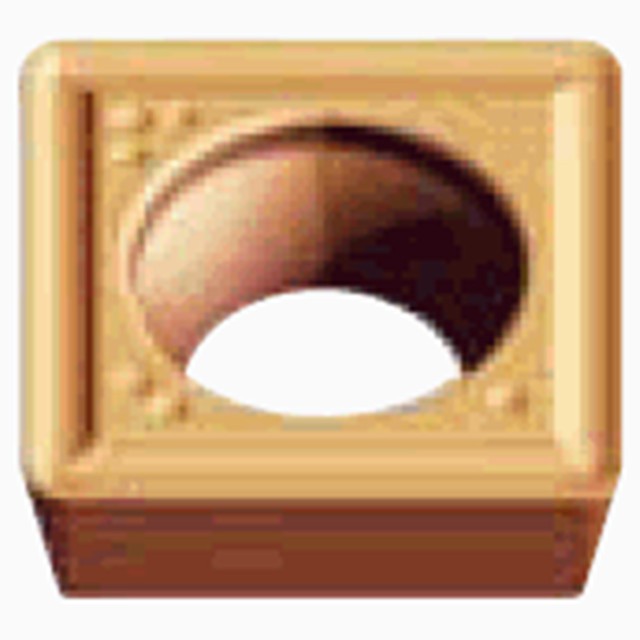

Positive 11 degree relief angle, M class, square insert, for multi-purpose cutting of grey and ductile cast iron.
| Manufacturer Part Number | 6864801 |
| Corner Radius (Inch) | 0.016" |
| Cutting Edge Length (Inch) | 1/2" |
| Maximum Depth of Cut (Inch) | 0.0787" |
| Fixing Hole Diameter (Inch) | 0.217" |
| Inscribed Circle Diameter (Inch) | 1/2" |
| Insert Thickness (Inch) | 0.187" |
| Maximum Turning Feed (Inch) | 0.0118"/rev |
| Minimum Depth of Cut (Inch) | 0.0019" |
| Minimum Turning Feed (Inch) | 0.002"/rev |
| Coating | TiCN+Al2O3+TiN |
| Cutting Edge Material | Carbide |
| Grade | T5115 |
| Tool Type | Turn Positive Inserts |
| Applicable Material | Cast Iron |
| Chip Breaker Type | CM |
| Major Clearance Angle | 11 Degree |
| Body Material | Carbide |
