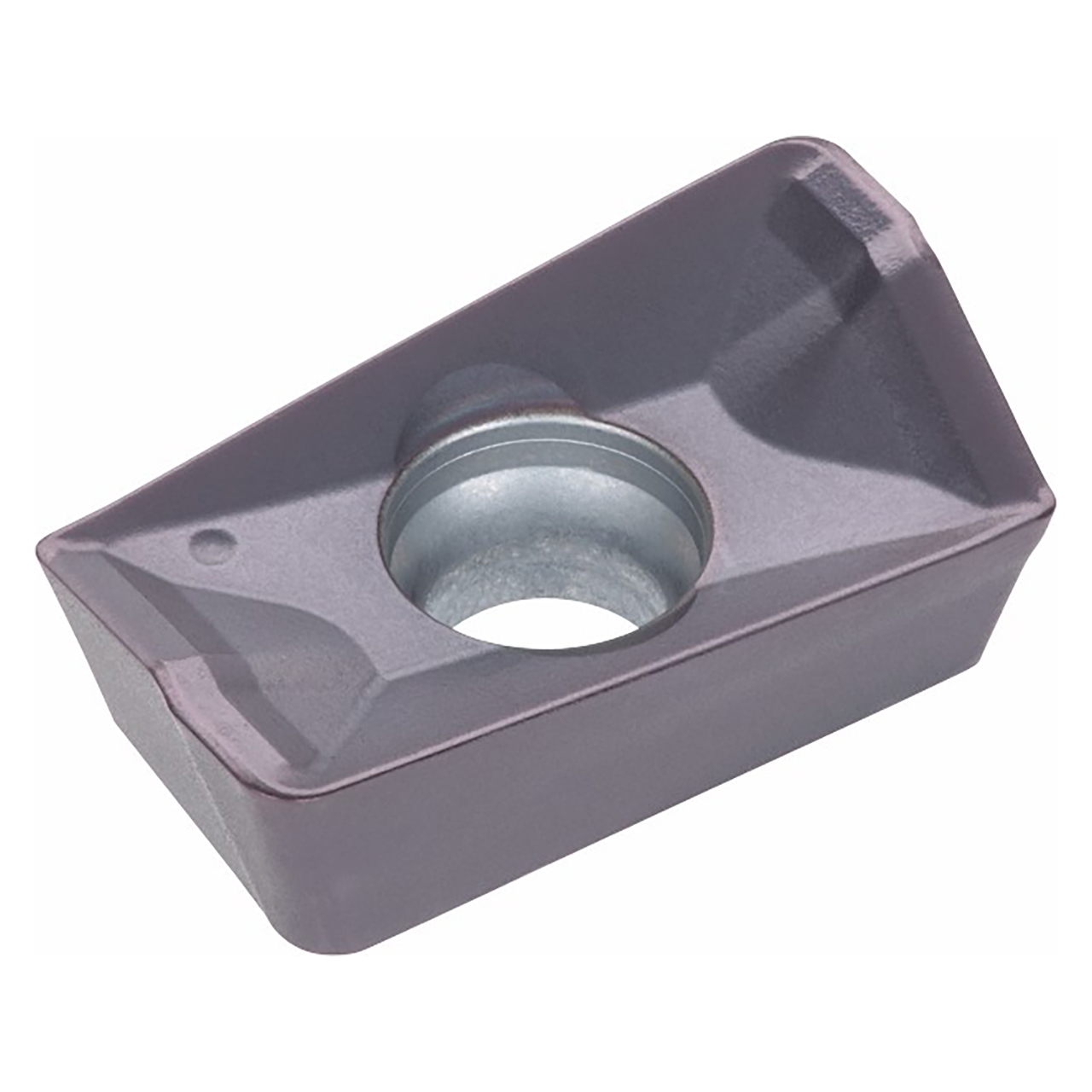

High performance insert with MJ chipbreaker for general purpose.
| # MFG | 6866629 |
| Corner Radius (Inch) | 0.0315" |
| Depth of Cut Maximum (Inch) | 0.417" |
| Inscribed Circle Diameter (Inch) | 0.264" |
| Insert Length (Inch) | 0.484" |
| Insert Thickness (Inch) | 0.146" |
| Insert Width (Inch) | 0.264" |
| Maximum Feed per Tooth | 0.0039"/tooth |
| Minimum Feed per Tooth | 0.002"/tooth |
| Number of Cutting Edges | 2 |
| Wiper Edge Length | 0.055" |
| Application | Shoulder Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH725 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
