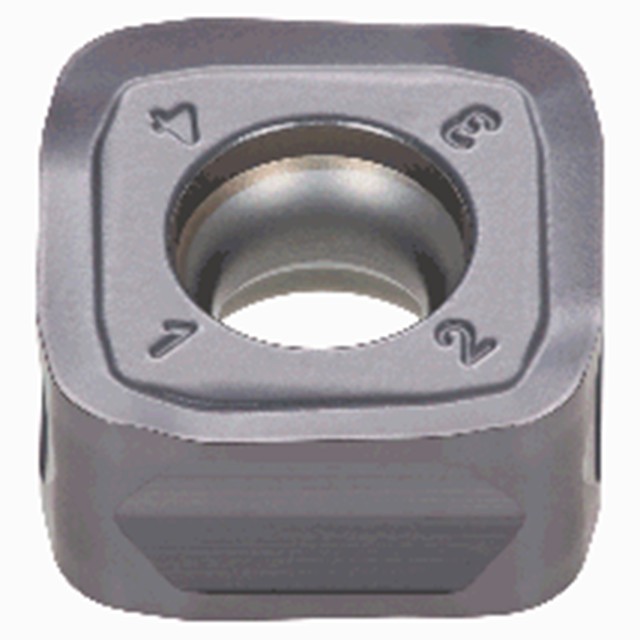

8 corners double sided insert with MJ chipbreaker, low cutting force even in high feed cutting.
| Manufacturer Part Number | 6869927 |
| Cutting Edge Effective Length (Inch) | 0.461" |
| Corner Radius (Inch) | 0.0787" |
| Depth of Cut Maximum (Inch) | 0.079" |
| Inscribed Circle Diameter (Inch) | 0.461" |
| Insert Thickness (Inch) | 0.236" |
| Insert Width (Inch) | 0.461" |
| Maximum Feed per Tooth | 0.0787"/tooth |
| Minimum Feed per Tooth | 0.02"/tooth |
| Number of Cutting Edges | 8 |
| Wiper Edge Length | 0.039" |
| Application | Face Milling, High Feed Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH130 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel |
