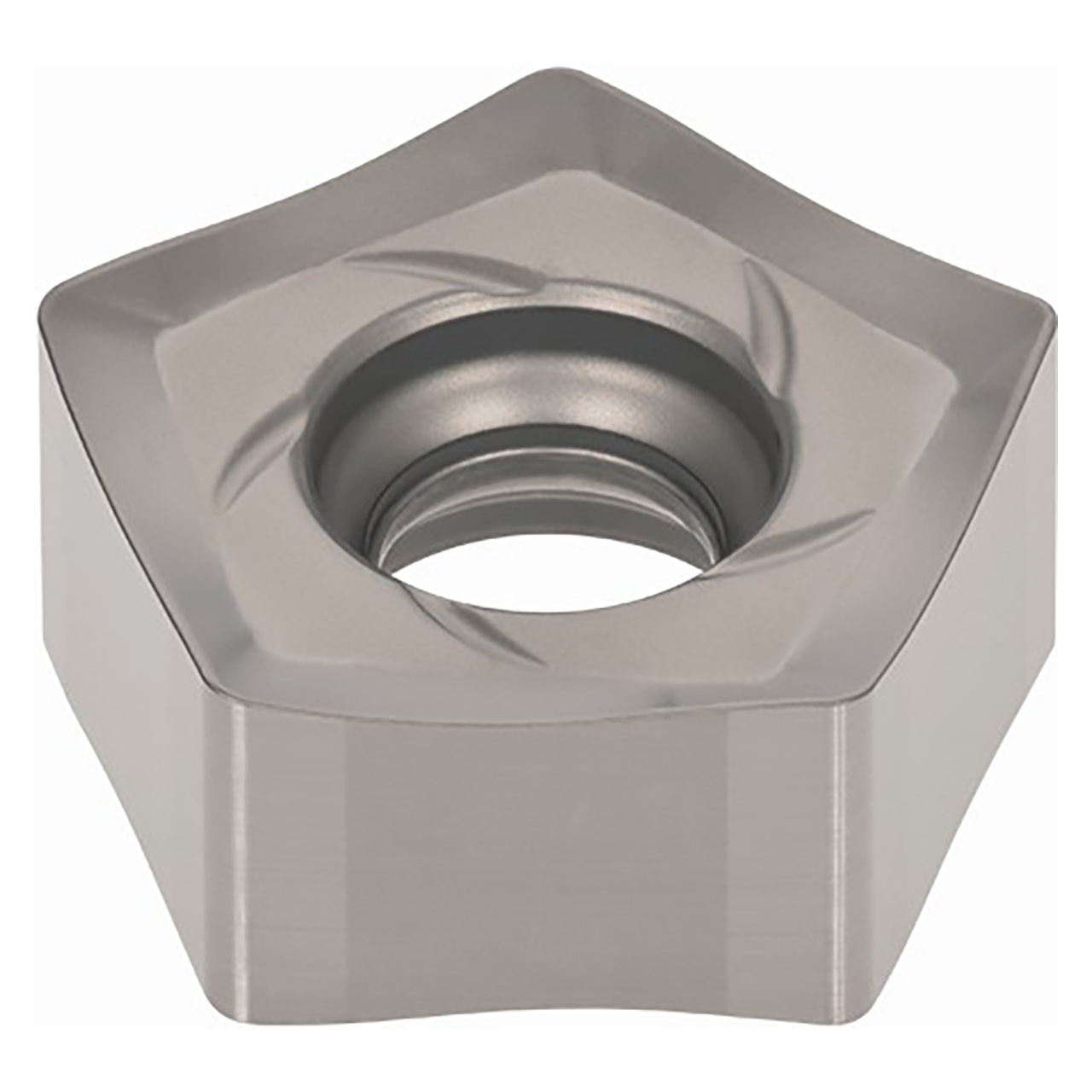

For general purpose, C class, Double sided pentagonal insert. Suitable for steels and cast iron.
| # MFG | 6879073 |
| Cutting Edge Effective Length (Inch) | 0.35" |
| Corner Radius (Inch) | 0.0314" |
| Depth of Cut Maximum (Inch) | 0.252" |
| Inscribed Circle Diameter (Inch) | 0.48" |
| Insert Thickness (Inch) | 0.233" |
| Maximum Feed per Tooth | 0.0236"/tooth |
| Minimum Feed per Tooth | 0.004"/tooth |
| Number of Cutting Edges | 10 |
| Wiper Edge Length | 0.055" |
| Application | Face Milling |
| Coating | TiCN+Al2O3+TiN |
| Body Material | Carbide |
| Grade | T1115 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel |
