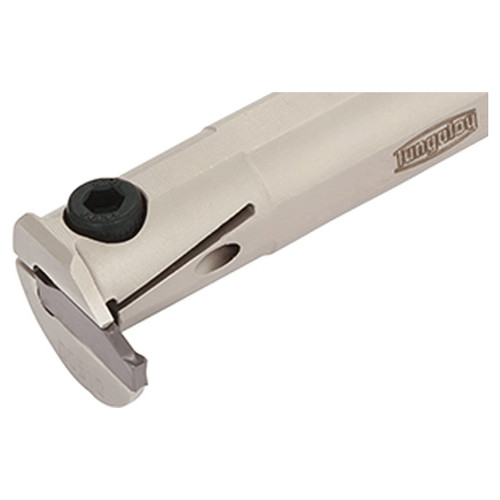

Boring bars for Internal grooving & turning.
Product Specifications
| Manufacturer Part Number | 6880713 |
| Connection Diameter Machine Side (Inch) | 1-1/4" |
| Cutting Width Maximum (Inch) | 0.334" |
| Cutting Width Minimum (Inch) | 0.256" |
| Functional Length (Inch) | 10.000" |
| Functional Width (Inch) | 0.839" |
| Head Length (Inch) | 2.362" |
| Minimum Bore Diameter (Inch) | 1.438" |
| Shank Height (Inch) | 1.142" |
| Cutting Direction | Right Hand |
| Tool Type | Indexable Turn & Groove Tools |
| Application | Internal Grooving |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Minimum Bore Diameter (Inch):
1-7/16"
Minimum Bore Diameter (Decimal Inch):
1.4380"
Minimum Bore Diameter (mm):
36.53mm
