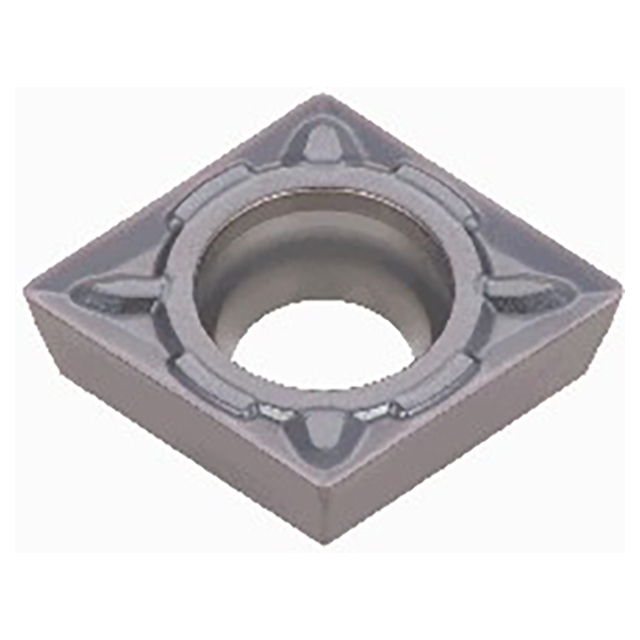

Positive 11 degree relief angle, M class, 80 degree rhombic insert, for medium cutting.
| # MFG | 6890172 |
| Corner Radius (Inch) | 0.031" |
| Cutting Edge Length (Inch) | 0.382" |
| Maximum Depth of Cut (Inch) | 0.1181" |
| Fixing Hole Diameter (Inch) | 0.173" |
| Inscribed Circle Diameter (Inch) | 3/8" |
| Insert Thickness (Inch) | 1/8" |
| Maximum Turning Feed (Inch) | 0.0118"/rev |
| Minimum Depth of Cut (Inch) | 0.0393" |
| Minimum Turning Feed (Inch) | 0.0059"/rev |
| Grade | AH6235 |
| Tool Type | Turn Positive Inserts |
| Applicable Material | Steel, Stainless Steel |
| Chip Breaker Type | PM |
| Major Clearance Angle | 11 Degree |
| Body Material | Carbide |
