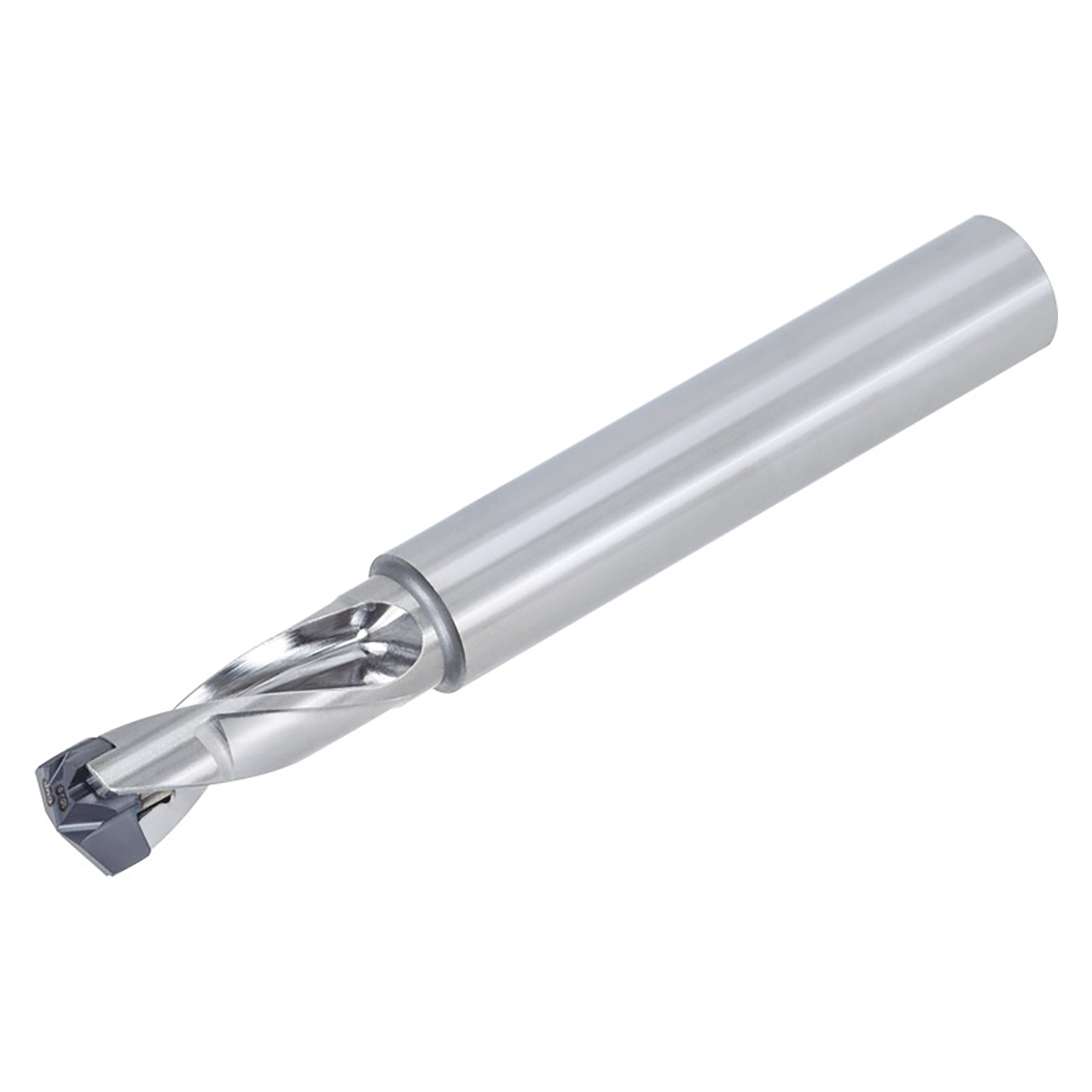

"DrillMeister" TIDC L/D=3 indexable head drills.
Product Specifications
| Cutting Diameter Maximum (mm) | 16.9 mm |
| Cutting Diameter Minimum (mm.) | 16 mm |
| Connection Diameter Machine Side (Inch) | 0.551" |
| Overall Length (mm) | 122.20mm |
| Point Length (Inch) | 0.081" |
| Shank Length (Inch)) | 1.693" |
| Shank Length (mm) | 1.693" |
| Insert Seat Size Code (SSC) | 13 |
| Coolant Supply Property (CSP) | Through Hole |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (Decimal Inch):
0.6654"
Minimum Cutting Diameter (Decimal Inch):
0.6299"
Body Material:
Steel
Overall Length (Decimal Inch):
4.8110"
Point Length (Decimal Inch):
0.0950"
Shank Length (Decimal Inch):
2.7560"
Usable Length (Decimal Inch):
1.3030"
