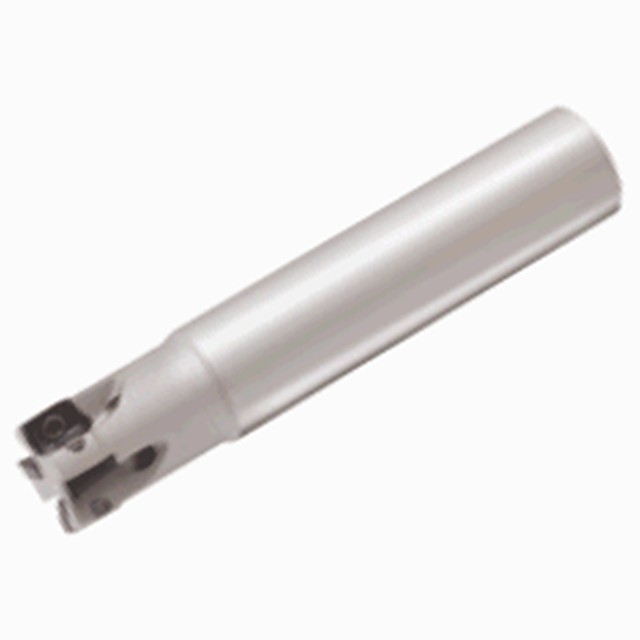

High precision shoulder square endmills with AOMT/AOGT07 inserts.
| Manufacturer Part Number | 6892309 |
| Connection Diameter Machine Side (Inch) | 3/4" |
| Cutting Diameter (Inch) | 3/4" |
| Maximum Cutting Diameter (Inch) | 3/4" |
| Cutting Item Count | 5 |
| Maximum Depth of Cut (Inch) | 0.276" |
| Functional Length (Inch) | 4" |
| Head Length (Inch) | 1-1/8" |
| Overall Length (Inch) | 4" |
| Shank Length (Inch) | 2-7/8" |
| Shank Type | Round |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Body Material | Steel |
| Application | Shoulder Milling |
| Tool Type | 90 Indexable Endmills |
