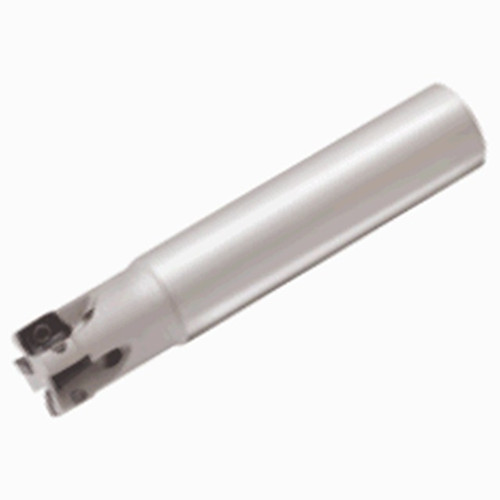

High precision shoulder square endmills with AOMT/AOGT07 inserts.
Product Specifications
| Manufacturer Part Number | 6892312 |
| Connection Diameter Machine Side (Inch) | 1" |
| Cutting Diameter (Inch) | 1" |
| Maximum Cutting Diameter (Inch) | 1" |
| Cutting Item Count | 7 |
| Maximum Depth of Cut (Inch) | 0.276" |
| Functional Length (Inch) | 3.781" |
| Head Length (Inch) | 1-1/2" |
| Overall Length (Inch) | 3.781" |
| Shank Length (Inch) | 2.281" |
| Shank Type | Weldon |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Body Material | Steel |
| Application | Shoulder Milling |
| Tool Type | 90 Indexable Endmills |
