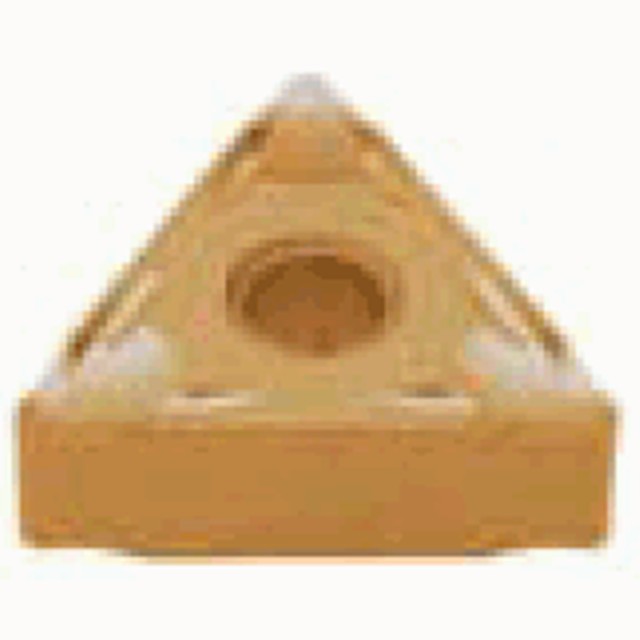

Tungaloy 6903208 | TNMG 433 SS AH6225 1/2" Circle Diameter x 0.187" Thickness x 0.047" Radius Carbide Indexable Turning Insert

$17.00 $11.90
(You save $5.10)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
Corner Radius (Decimal Inch):
0.0470"
Corner Radius (mm):
1.19mm
SKU:
23158256
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Negative relief angle, M class, triangular insert, for finishing of stainless steel etc.


Product Specifications
Manufacturer Part Number6903208
Corner Radius (Inch)0.047"
Cutting Edge Length (Inch)0.866"
Maximum Depth of Cut (Inch)0.1181"
Fixing Hole Diameter (Inch)0.203"
Inscribed Circle Diameter (Inch)1/2"
Insert Thickness (Inch)0.187"
Maximum Turning Feed (Inch)0.0079"/rev
Minimum Depth of Cut (Inch)0.0196"
Minimum Turning Feed (Inch)0.0031"/rev
GradeAH6225
Tool TypeTurn Negative Inserts
Applicable MaterialSteel, Stainless Steel
Chip Breaker TypeSS
Major Clearance Angle6 Degree
Body MaterialCarbide
