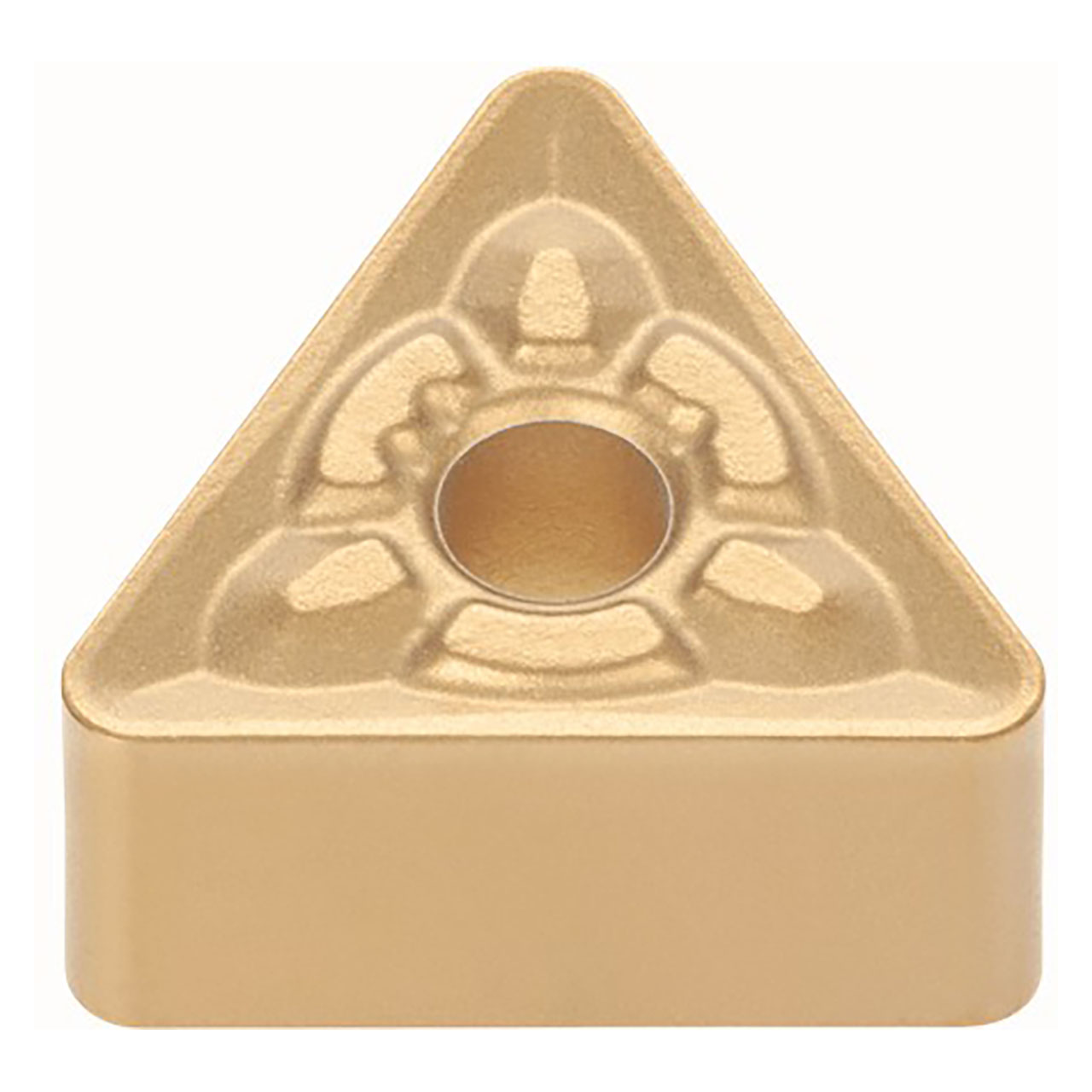

Tungaloy 6903209 | TNMG 231E SM AH6225 1/4" Circle Diameter x 0.187" Thickness x 0.016" Radius Carbide Indexable Turning Insert

$8.70 $6.09
(You save $2.61)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/4"
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
Corner Radius (Decimal Inch):
0.0160"
Corner Radius (mm):
0.41mm
interval quantity:
10
SKU:
23158257
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Negative relief angle, M class, triangular insert, for medium cutting of stainless steel.


Product Specifications
# MFG6903209
Corner Radius (Inch)0.016"
Cutting Edge Length (Inch)0.433"
Maximum Depth of Cut (Inch)0.1181"
Fixing Hole Diameter (Inch)0.089"
Inscribed Circle Diameter (Inch)1/4"
Insert Thickness (Inch)0.187"
Maximum Turning Feed (Inch)0.0196"/rev
Minimum Depth of Cut (Inch)0.0393"
Minimum Turning Feed (Inch)0.0079"/rev
GradeAH6225
Tool TypeTurn Negative Inserts
Applicable MaterialSteel, Stainless Steel
Chip Breaker TypeSM
Body MaterialCarbide
