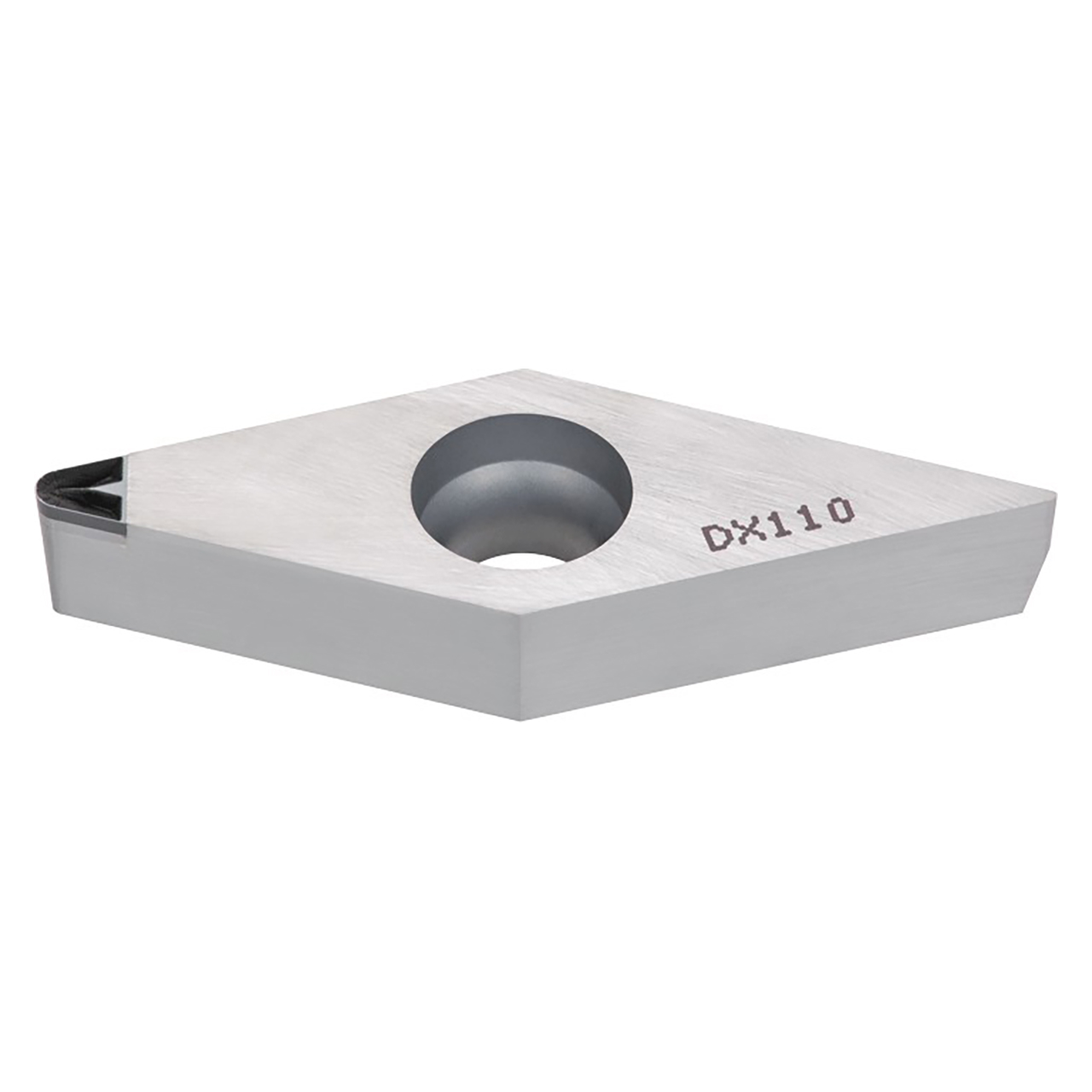

Positive 5 degree relief angle, G class, 35 degree rhombic PCD insert with chipbreaker.
Product Specifications
| # MFG | 6919797 |
| Cutting Edge Length (Inch) | 0.654" |
| Cutting Edge Effective Length (Inch) | 0.118" |
| Maximum Depth of Cut (Inch) | 0.0787" |
| Fixing Hole Diameter (Inch) | 0.173" |
| Insert Thickness (Inch) | 0.187" |
| Maximum Turning Feed (Inch) | 0.0118"/rev |
| Minimum Depth of Cut (Inch) | 0.0039" |
| Minimum Turning Feed (Inch) | 0.002"/rev |
| Cutting Edge Material | PCD |
| Grade | DX110 |
| Tool Type | Turn Ultra Hard Inserts |
| Applicable Material | Non Ferrous Metals |
| Chip Breaker Type | NS-DIA |
| Body Material | Carbide |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
