| Manufacturer Part Number | 6947172 |

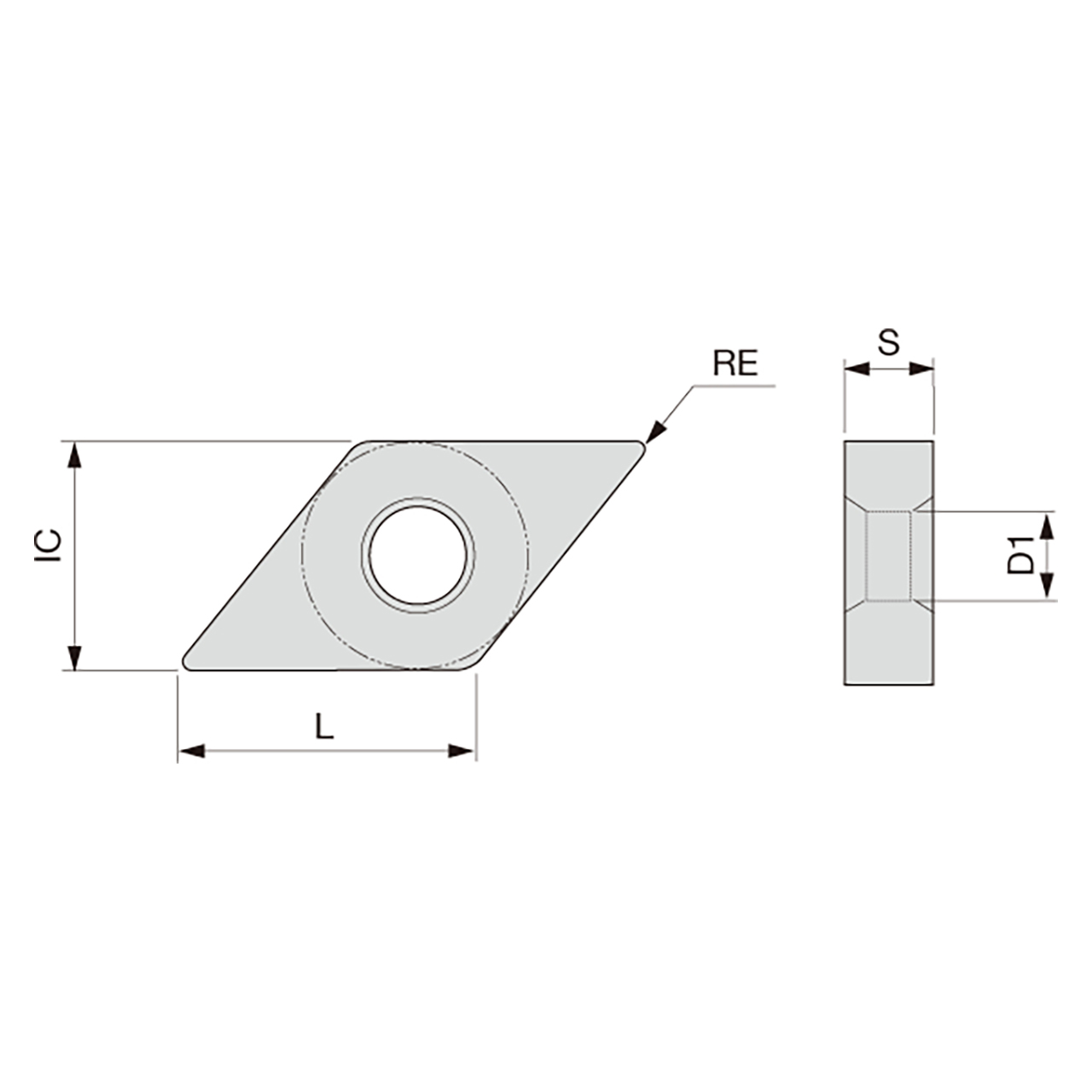

| Corner Radius (Decimal Inch) | 0.016" |
| Cutting Edge Length (Decimal Inch) | 0.610" |
| Cutting Edge Effective Length (Decimal Inch) | 0.572" |
| Maximum Depth of Cut (Decimal Inch) | 0.059" |
| Minimum Depth of Cut (Decimal Inch) | 0.012" |
| Inscribed Circle Diameter (Inch) | 1/2" |
| Insert Thickness (Decimal Inch) | 0.187" |
| Chip Breaker Type | Nega-PS |
| Fixing Hole Diameter (Deciaml Inch) | 0.203" |
| Cutting Direction | Neutral |
| Grade | AH8015 |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hard Materials, Aluminum / Non-Ferrous Materials, Super-Alloys / Titanium |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Coating | AlTiN |

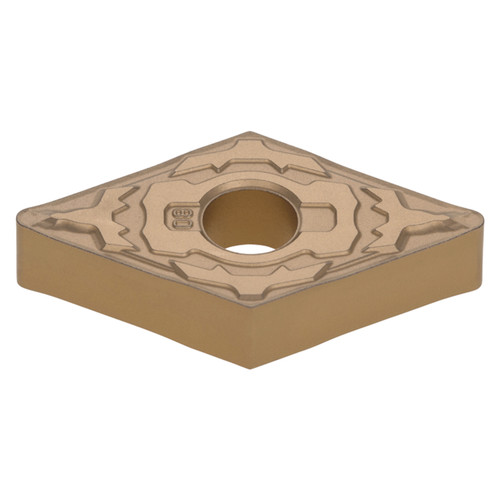

| Product Type | Turning Insert |
