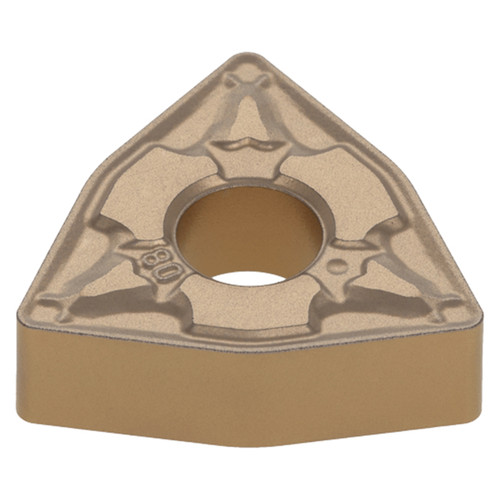

| Manufacturer Part Number | 6947622 |
| Corner Radius (Decimal Inch) | 0.032" |
| Cutting Edge Length (Decimal Inch) | 0.343" |
| Cutting Edge Effective Length (Decimal Inch) | 0.299" |
| Maximum Depth of Cut (Decimal Inch) | 0.217" |
| Minimum Depth of Cut (Decimal Inch) | 0.020" |
| Inscribed Circle Diameter (Inch) | 1/2" |
| Insert Thickness (Decimal Inch) | 0.187" |
| Chip Breaker Type | Nega-PM |
| Fixing Hole Diameter (Deciaml Inch) | 0.203" |
| Cutting Direction | Neutral |
| Grade | AH8015 |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hard Materials, Aluminum / Non-Ferrous Materials, Super-Alloys / Titanium |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Coating | AlTiN |
| Product Type | Turning Insert |
