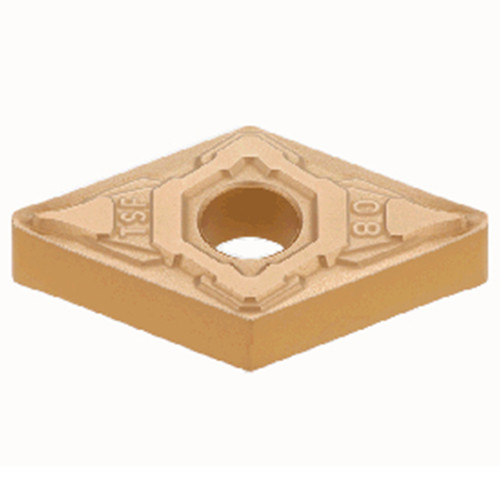

| Manufacturer Part Number | 6950930 |
| Corner Radius (Decimal Inch) | 0.008" |
| Cutting Edge Length (Decimal Inch) | 0.610" |
| Maximum Depth of Cut (Decimal Inch) | 0.059" |
| Minimum Depth of Cut (Decimal Inch) | 0.008" |
| Inscribed Circle Diameter (Inch) | 1/2" |
| Insert Thickness (Decimal Inch) | 0.187" |
| Chip Breaker Type | Nega-TSF |
| Fixing Hole Diameter (Deciaml Inch) | 0.203" |
| Cutting Direction | Neutral |
| Grade | T9215 |
| Applicable Material | Steel, Stainless Steel, Cast Iron |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Coating | Ti-compound+Al2O3+TiN |
| Product Type | Turning Insert |
