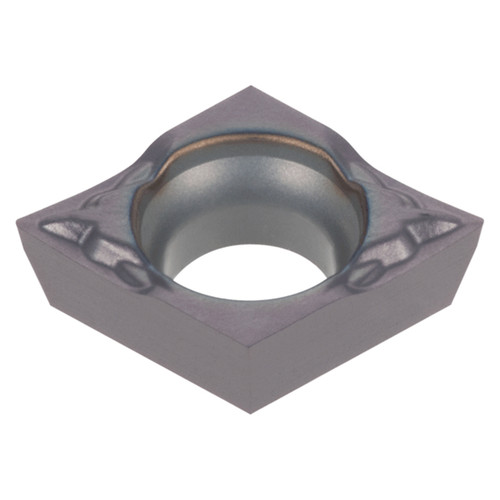

| Manufacturer Part Number | 6967488 |
| Corner Radius (Decimal Inch) | 0.004" |
| Cutting Edge Length (Decimal Inch) | 0.161" |
| Cutting Edge Effective Length (Decimal Inch) | 0.151" |
| Maximum Depth of Cut (Decimal Inch) | 0.020" |
| Minimum Depth of Cut (Decimal Inch) | 0.002" |
| Inscribed Circle Diameter (Deciaml Inch) | 0.156" |
| Insert Thickness (Decimal Inch) | 0.063" |
| Chip Breaker Type | JS |
| Fixing Hole Diameter (Deciaml Inch) | 0.091" |
| Clearance Angle Major (Degree) | 11 Degree |
| Cutting Direction | Neutral |
| Grade | SH7025 |
| Applicable Material | Steel, Stainless Steel |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Coating | TiAlN+TiCN |
| Product Type | Turning Insert |
