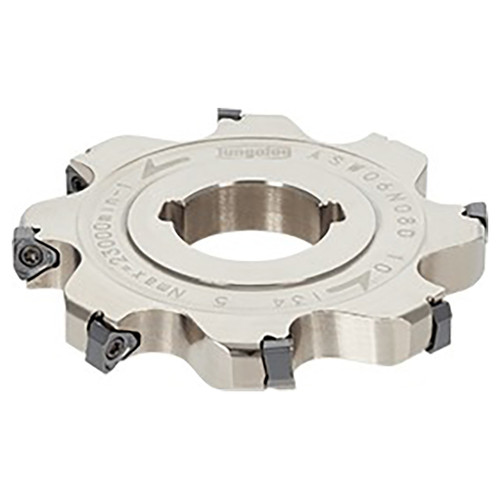

Axial drive type slot milling cutter.
Product Specifications
| Manufacturer Part Number | 6987237 |
| Cutting Diameter (Inch) | 6.000" |
| Cutting Depth Maximum (Inch) | 1.819" |
| Cutting Item Count | 14 |
| Cutting Width (Inch) | 1/2" |
| Connection Diameter Machine Side (Inch) | 1-1/2" |
| Overall Length (Inch) | 1/2" |
| Hub Thickness (Inch) | 1/2" |
| Peripheral Effective Cutting Edge Count | 7 |
| Tool Type | Double-sided slotting cutters |
| Body Material | Steel |
| Application | Slot Milling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Cutting Width (Inch):
1/2"
Cutting Width (Decimal Inch):
0.5000"
Cutting Width (mm):
12.70mm
Maximum Depth of Cut (Inch):
1-13/16"
Maximum Depth of Cut (Decimal Inch):
1.8190"
Maximum Depth of Cut (mm):
46.20mm
Cutter Diameter (Inch):
6"
Cutter Diameter (Decimal Inch):
6.0000"
Cutter Diameter (mm):
152.40mm
interval quantity:
1
