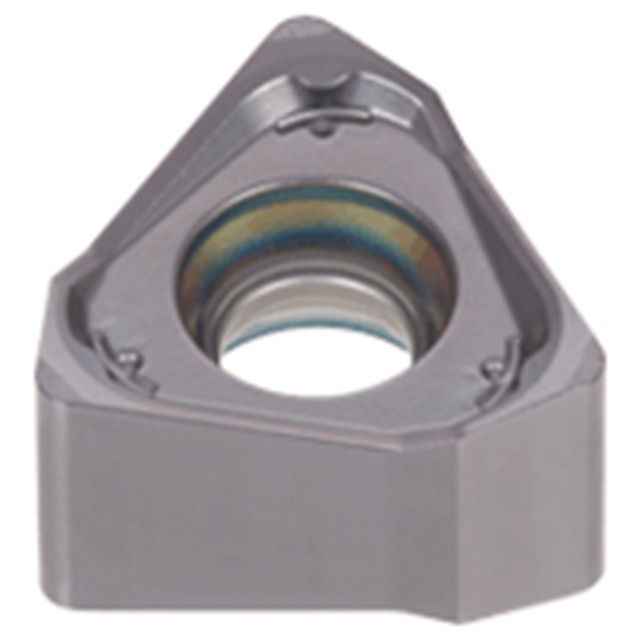

Inserts for slot milling cutters.
Product Specifications
Manufacturer Part Number | 6987258 |
Cutting Edge Effective Length (Inch) | 0.22" |
Corner Radius (Inch) | 0.0315" |
Inscribed Circle Diameter (Inch) | 0.24" |
Insert Thickness (Inch) | 0.173" |
Number of Cutting Edges | 6 |
Application | Slot Milling |
Coating | TiAlN |
Body Material | Carbide |
Grade | AH120 |
Cutting Edge Material | Carbide |
Applicable Material | Steel, Stainless Steel, Cast Iron, Hard Materials, Hi Temp Alloys |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH120
Finish/Coating:
TiAlN
Inscribed Circle (Inch):
15/64"
Inscribed Circle (Decimal Inch):
0.2400"
Inscribed Circle (mm):
6.10mm
Thickness (Inch):
11/64"
Thickness (Decimal Inch):
0.1730"
Thickness (mm):
4.39mm
