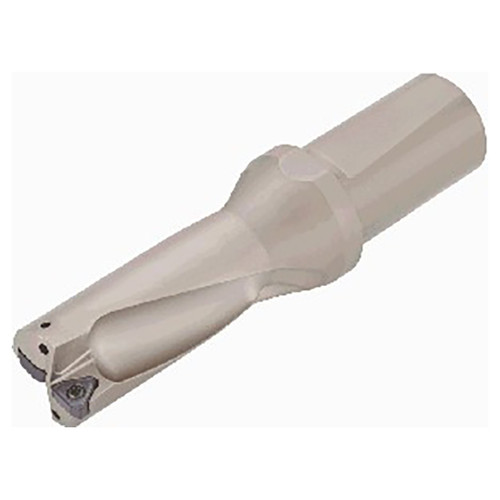

"TungSix-Drill" Indexable insert drills, L/D=4, flat cotter.
Product Specifications
| # MFG | 6995784 |
| Connection Diameter Machine Side (Inch) | 1-1/4" |
| Cutting Diameter (Inch) | 1-1/8" |
| Functional Length (Inch) | 5.509" |
| Overall Length (Inch) | 7.894" |
| Point Length (Inch) | 0.043" |
| Shank Length (Inch) | 2.342" |
| Usable Length (Inch) | 4.543" |
| Flange Diameter (Inch) | 1.575" |
| Decimal Equivalent | 1.125" |
| Application | General Drilling |
| Tool Type | Indexable Insert Drills |
| Body Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Drill Diameter (Inch):
1-1/8"
Drill Diameter (Decimal Inch):
1.1252"
Drill Diameter (mm):
28.58mm
Shank Diameter (Inch):
1-1/4"
Shank Diameter (Decimal Inch):
1.2500"
Shank Diameter (mm):
31.75mm
interval quantity:
1
