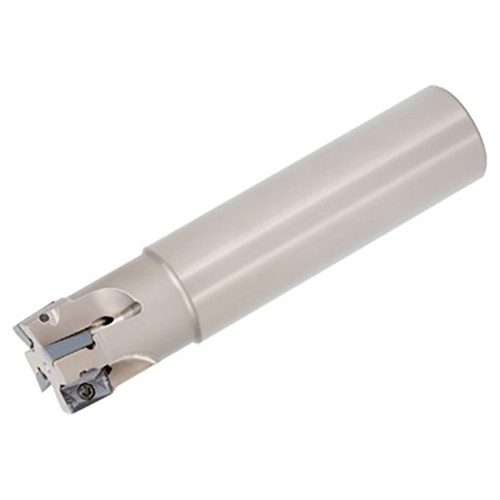

High precision shoulder square endmills with ASMT/ASGT11 inserts.
Product Specifications
| # MFG | 6996061 |
| Connection Diameter Machine Side (mm) | 25mm |
| Cutting Diameter (mm) | 25mm |
| Cutting Item Count | 3 |
| Maximum Cutting Diameter (mm) | 25mm |
| Maximum Depth of Cut (mm) | 10.6mm |
| Functional Length (mm) | 115mm |
| Head Length (mm) | 35mm |
| Overall Length (mm) | 115mm |
| Shank Length (mm) | 80mm |
| Shank Type | Round |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Body Material | Steel |
| Application | Shoulder Milling |
| Tool Type | 90 Indexable Endmills |
