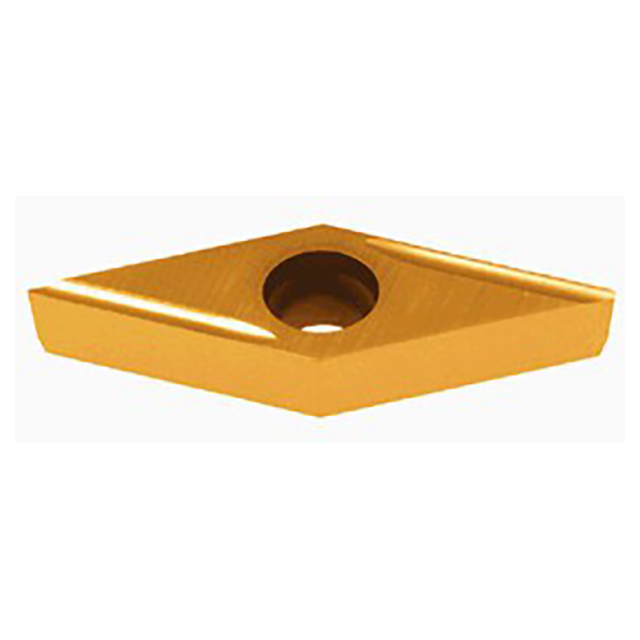

Positive 5 degree relief angle, G class, 35 degree rhombic insert for finishing to medium cutting.
Product Specifications
| # MFG | 6998054 |
| Corner Radius (Inch) | 0.004" |
| Cutting Edge Length (Inch) | 0.441" |
| Maximum Depth of Cut (Inch) | 0.1969" |
| Fixing Hole Diameter (Inch) | 0.11" |
| Inscribed Circle Diameter (Inch) | 1/4" |
| Insert Thickness (Inch) | 1/8" |
| Maximum Turning Feed (Inch) | 0.0039"/rev |
| Minimum Depth of Cut (Inch) | 0.0039" |
| Minimum Turning Feed (Inch) | 0.0004"/rev |
| Cutting Edge Material | Cermet |
| Grade | NS9530 |
| Tool Type | Turn Positive Inserts |
| Applicable Material | Steel, Stainless Steel, Cast Iron |
| Chip Breaker Type | J10 |
| Major Clearance Angle | 5 Degree |
| Body Material | Carbide |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Neck Diameter (mm):
7.60mm
Corner Radius (Decimal Inch):
0.0040"
Finish/Coating:
Uncoated
Body Material:
Carbide
Grade:
NS9530
Cutting Direction:
Right Hand
Maximum Depth of Cut (Decimal Inch):
0.1969"
interval quantity:
10
