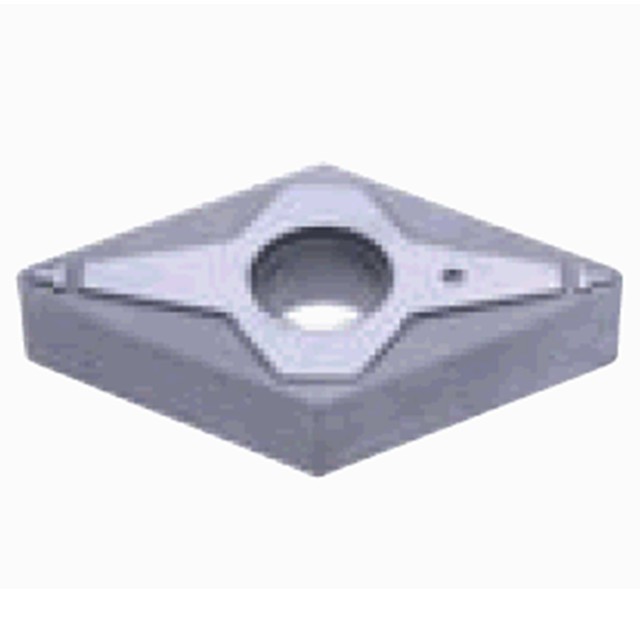

Tungaloy 6998147 | DNMG 432 TF NS9530 1/2" Circle Diameter x 0.187" Thickness x 0.031" Radius Cermet Indexable Turning Insert

$17.65 $12.36
(You save $5.29)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
Corner Radius (Decimal Inch):
0.0310"
Corner Radius (mm):
0.79mm
SKU:
23020863
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Negative relief angle, M class, 55 degree rhombic insert, for precision finishing.


Product Specifications
Manufacturer Part Number6998147
Corner Radius (Inch)0.031"
Cutting Edge Length (Inch)0.61"
Maximum Depth of Cut (Inch)0.0197"
Fixing Hole Diameter (Inch)0.203"
Inscribed Circle Diameter (Inch)1/2"
Insert Thickness (Inch)0.187"
Maximum Turning Feed (Inch)0.0079"/rev
Minimum Depth of Cut (Inch)0.0079"
Minimum Turning Feed (Inch)0.0012"/rev
Cutting Edge MaterialCermet
GradeNS9530
Tool TypeTurn Negative Inserts
Applicable MaterialSteel, Stainless Steel, Cast Iron
Chip Breaker TypeTF
Body MaterialCarbide

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
Corner Radius (Decimal Inch):
0.0310"
Corner Radius (mm):
0.79mm
