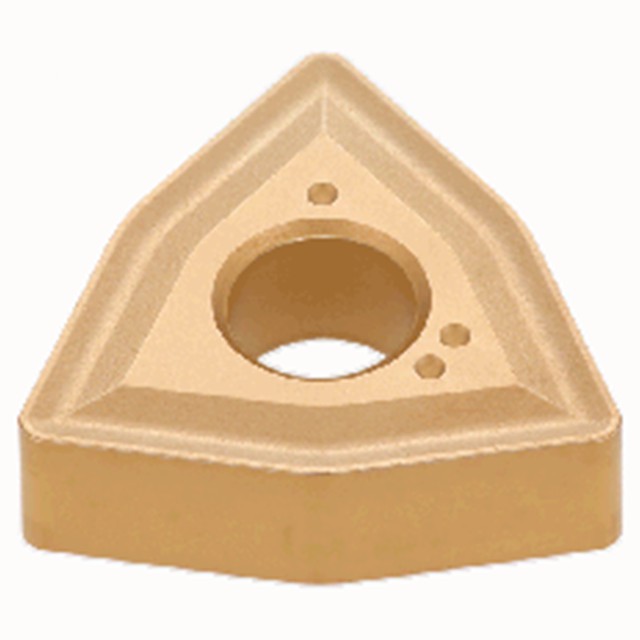

Tungaloy 6998254 | WNMG 431 NS9530 1/2" Circle Diameter x 0.187" Thickness x 0.016" Radius Cermet Indexable Turning Insert

$12.80 $8.96
(You save $3.84)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
Corner Radius (Decimal Inch):
0.0160"
Corner Radius (mm):
0.41mm
SKU:
23139668
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Negative relief angle, M class, trigon insert, all-round chipbreaker for medium cutting.


Product Specifications
Manufacturer Part Number6998254
Corner Radius (Inch)0.016"
Cutting Edge Length (Inch)0.343"
Maximum Depth of Cut (Inch)0.2362"
Fixing Hole Diameter (Inch)0.203"
Inscribed Circle Diameter (Inch)1/2"
Insert Thickness (Inch)0.187"
Maximum Turning Feed (Inch)0.0157"/rev
Minimum Depth of Cut (Inch)0.0394"
Minimum Turning Feed (Inch)0.0079"/rev
Cutting Edge MaterialCermet
GradeNS9530
Tool TypeTurn Negative Inserts
Applicable MaterialSteel, Stainless Steel, Cast Iron
Chip Breaker TypeAR
Body MaterialCarbide
