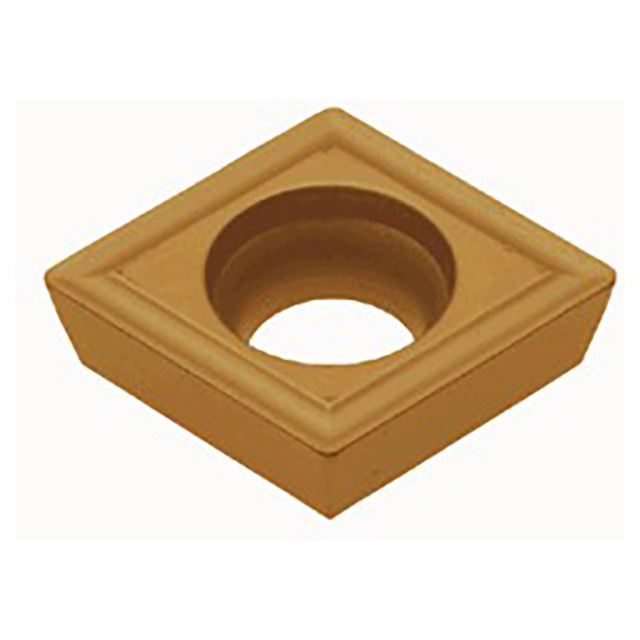

Tungaloy 6998463 | CPMT 53.53-24 NS9530 5/8" Circle Diameter x 0.219" Thickness x 0.047" Radius Cermet Indexable Turning Insert

$24.50 $15.93
(You save $8.57)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
5/8"
Inscribed Circle (Decimal Inch):
0.6250"
Inscribed Circle (mm):
15.87mm
Thickness (Inch):
7/32"
Thickness (Decimal Inch):
0.2190"
Thickness (mm):
5.56mm
Corner Radius (Decimal Inch):
0.0470"
Corner Radius (mm):
1.19mm
interval quantity:
10
SKU:
23139741
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Positive 11 degree relief angle, M class, 80 degree rhombic insert, for medium cutting.


Product Specifications
# MFG6998463
Corner Radius (Inch)0.047"
Cutting Edge Length (Inch)0.634"
Maximum Depth of Cut (Inch)0.1181"
Fixing Hole Diameter (Inch)0.217"
Inscribed Circle Diameter (Inch)5/8"
Insert Thickness (Inch)0.219"
Maximum Turning Feed (Inch)0.0118"/rev
Minimum Depth of Cut (Inch)0.0196"
Minimum Turning Feed (Inch)0.0039"/rev
Cutting Edge MaterialCermet
GradeNS9530
Tool TypeTurn Positive Inserts
Applicable MaterialSteel, Stainless Steel, Cast Iron
Chip Breaker Type24
Major Clearance Angle11 Degree
Body MaterialCarbide
