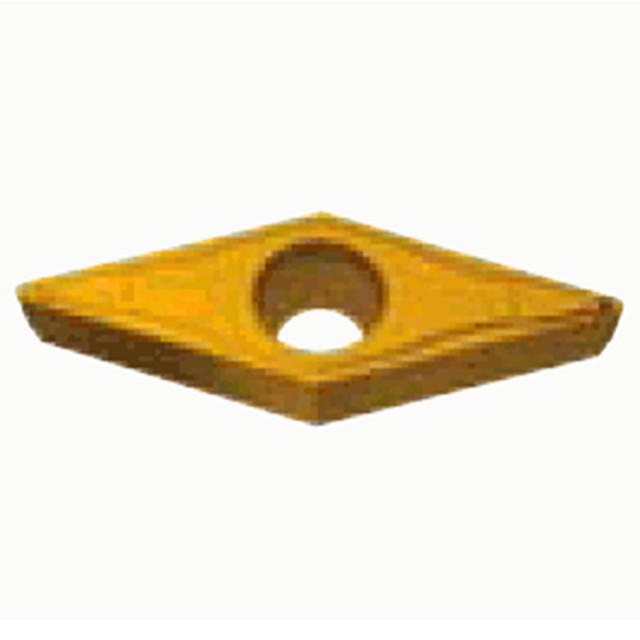

Tungaloy 6998570 | VBMT 220.5 PF NS9530 1/4" Circle Diameter x 1/8" Thickness x 0.008" Radius Cermet Indexable Turning Insert

$19.60 $12.74
(You save $6.86)
Brand:
Tungaloy
Neck Diameter (mm):
7.60mm
Corner Radius (Decimal Inch):
0.0078"
Finish/Coating:
Uncoated
Body Material:
Carbide
Grade:
NS9530
Cutting Direction:
Neutral
Maximum Depth of Cut (Decimal Inch):
0.0590"
SKU:
23026124
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Positive 5 degree relief angle, M class, 35 degree rhombic insert, for finishing.


Product Specifications
Manufacturer Part Number6998570
Corner Radius (Inch)0.008"
Cutting Edge Length (Inch)0.441"
Maximum Depth of Cut (Inch)0.059"
Fixing Hole Diameter (Inch)0.11"
Inscribed Circle Diameter (Inch)1/4"
Insert Thickness (Inch)1/8"
Maximum Turning Feed (Inch)0.0098"/rev
Minimum Depth of Cut (Inch)0.0078"
Minimum Turning Feed (Inch)0.0031"/rev
Cutting Edge MaterialCermet
GradeNS9530
Tool TypeTurn Positive Inserts
Applicable MaterialSteel, Stainless Steel, Cast Iron
Chip Breaker TypePF
Major Clearance Angle5 Degree
Body MaterialCarbide
