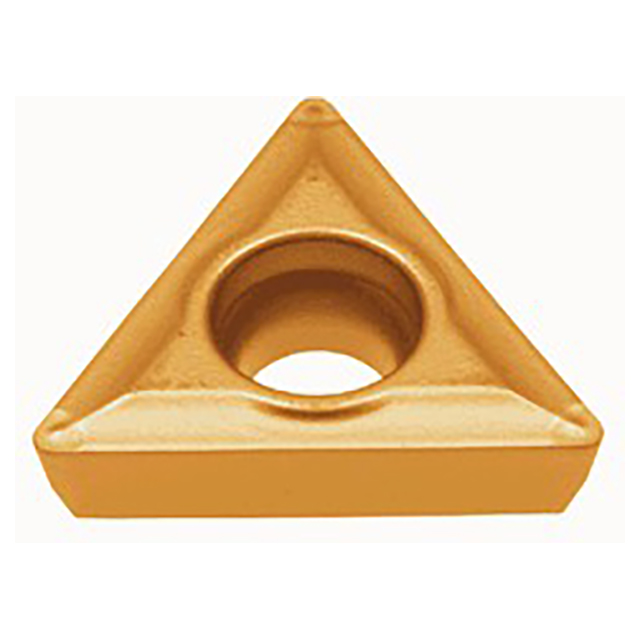

Positive 11 degree relief angle, M class, triangular insert, for finishing to medium cutting.
| # MFG | 6998636 |
| Corner Radius (Inch) | 0.016" |
| Cutting Edge Length (Inch) | 0.65" |
| Maximum Depth of Cut (Inch) | 0.0787" |
| Fixing Hole Diameter (Inch) | 0.173" |
| Inscribed Circle Diameter (Inch) | 3/8" |
| Insert Thickness (Inch) | 0.156" |
| Maximum Turning Feed (Inch) | 0.0118"/rev |
| Minimum Depth of Cut (Inch) | 0.0196" |
| Minimum Turning Feed (Inch) | 0.0039"/rev |
| Cutting Edge Material | Cermet |
| Grade | NS9530 |
| Tool Type | Turn Positive Inserts |
| Applicable Material | Steel, Stainless Steel, Cast Iron |
| Chip Breaker Type | 23 |
| Major Clearance Angle | 11 Degree |
| Body Material | Carbide |
