| Manufacturer Part Number | 910-000-001 |
| Coolant Connection (Size) | 1/8-27 NPT |
| Machine Side Connection Diameter (Decimal Inch) | 1.000" |
| Work Side Connection Diameter (Decimal Inch) | 1.000" |
| Minimum Bore Diameter (Decimal Inch) | 1.200" |
| Functional Length (Decimal Inch) | 10.000" |
| Minimum Overhang (Decimal Inch) | 5.000" |
| Maximum Overhang (Decimal Inch) | 7.000" |

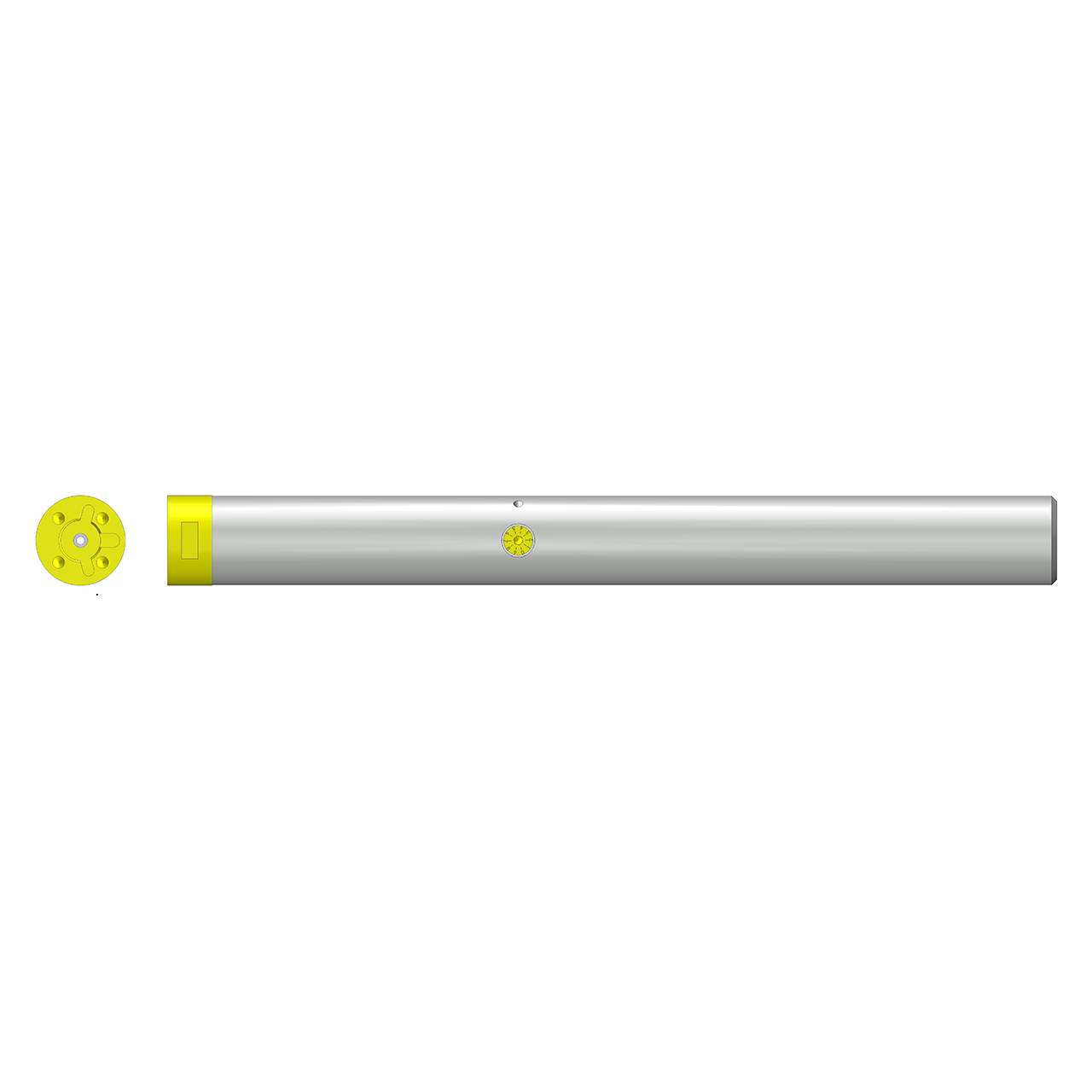

| Product Type | Modular Tunable Boring Bar |
