| Manufacturer Part Number | 966-000-079 |
| Body Diameter (Decimal Inch) | 1.100" |
| Body Diameter 2 (Decimal Inch) | 1.750" |
| Connection Retention Knob Thread Size | 5/8-11" |
| Connection Size Code Workpiece Side | ER16 |
| Body Length (Decimal Inch) | 4.620" |
| Body Length 1 (Decimal Inch) | 5.250" |
| Functional Length (Decimal Inch) | 6.000" |
| Counterbore Shoulder Length (Decimal Inch) | 3.000" |
| Connection Type | CAT40 |
| Collet Nut | ER-16HN |
| Adjustment Screw | ER-16S |
| Collet Wrench | ER-16W |

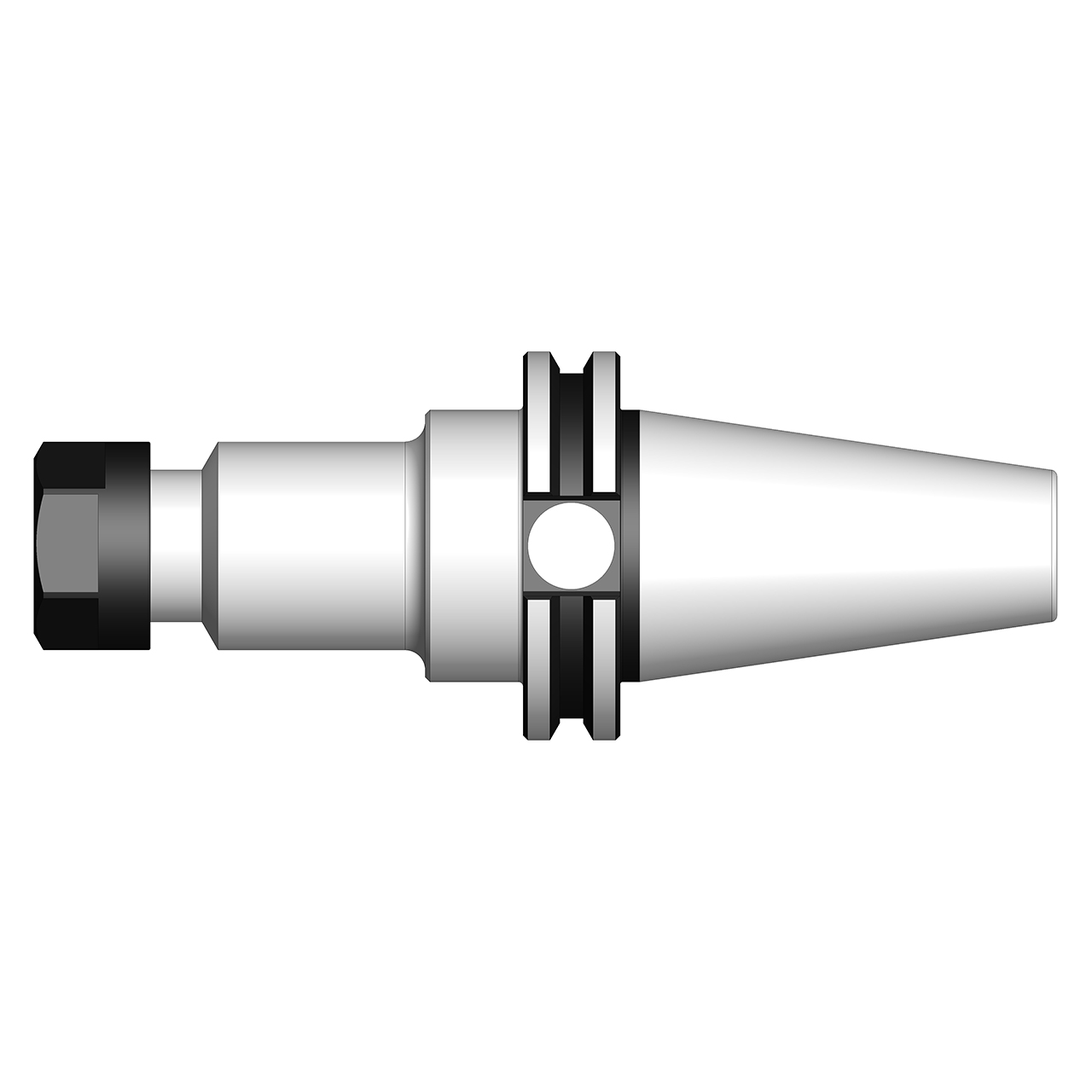

| Product Type | Collet Chuck Holder |
