| Manufacturer Part Number | 966-000-121 |
| Body Diameter (Decimal Inch) | 0.500" |
| Body Diameter 1 (Decimal Inch) | 1.750" |
| Work Side Connection Diameter (Decimal Inch) | 0.188" |
| Connection Retention Knob Thread Size | 5/8-11" |
| Body Length (Decimal Inch) | 2.625" |
| Body Length 1 (Decimal Inch) | 3.250" |
| Functional Length (Decimal Inch) | 4.000" |
| Head Length (Decimal Inch) | 3.250" |
| Counterbore Shoulder Length (Decimal Inch) | 0.790" |
| Connection Type | CAT40 |

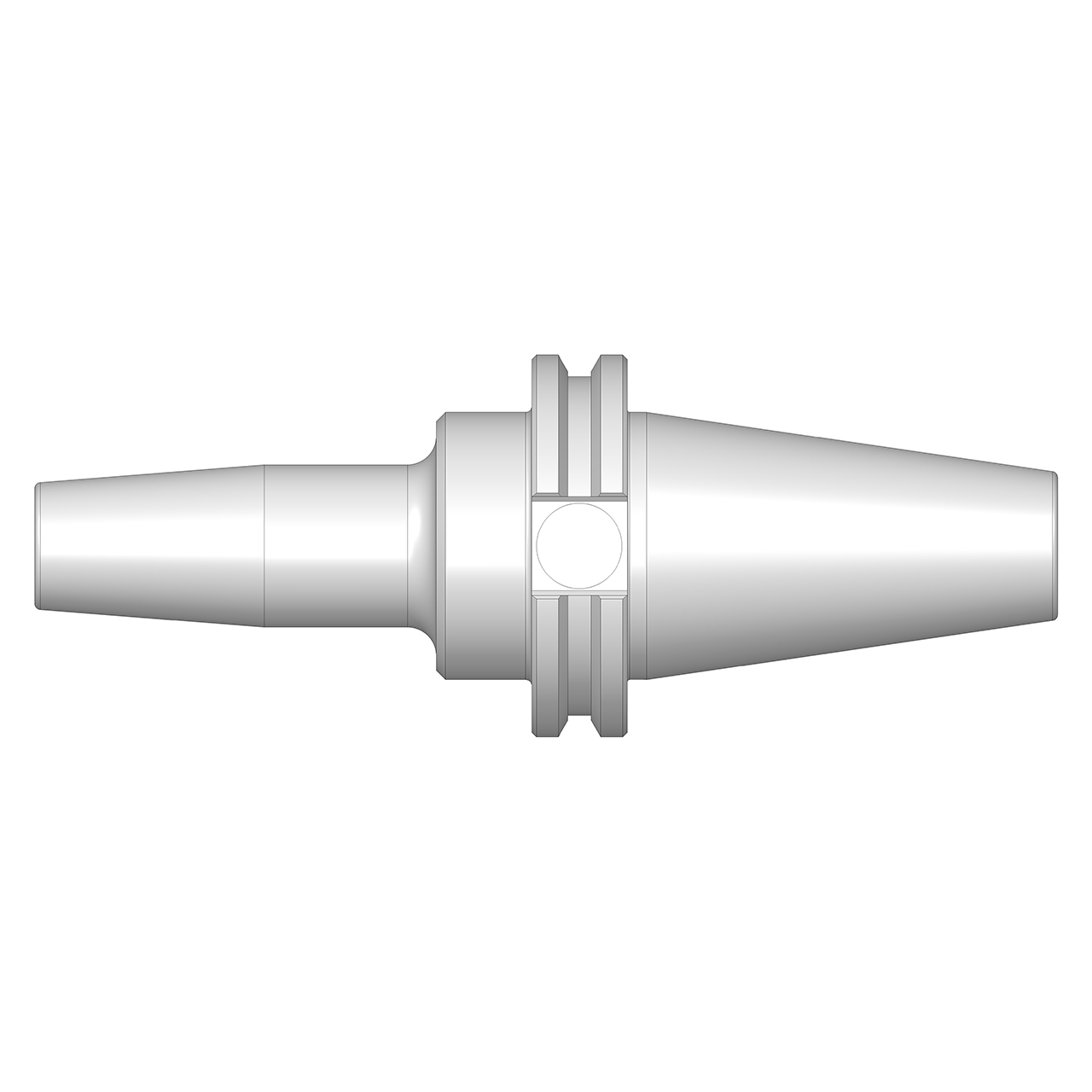

| Product Type | Shrink-Fit Tool Holder |
