Product Specifications
| Manufacturer Part Number | 966-000-466 |
| Body Diameter (Decimal Inch) | 3.380" |
| Body Diameter 1 (Decimal Inch) | 2.087" |
| Work Side Connection Diameter (Decimal Inch) | 1.500" |
| Body Length (Decimal Inch) | 0.940" |
| Body Length 1 (Decimal Inch) | 0.846" |
| Body Length 2 (Decimal Inch) | 1.476" |
| Functional Length (Decimal Inch) | 2.500" |
| Head Length (Decimal Inch) | 1.480" |
| Counterbore Shoulder Length (Decimal Inch) | 0.940" |
| Connection Type | HSK63A |
| Drive Key | UDK 625 |
| Lock Screw | U5005 |

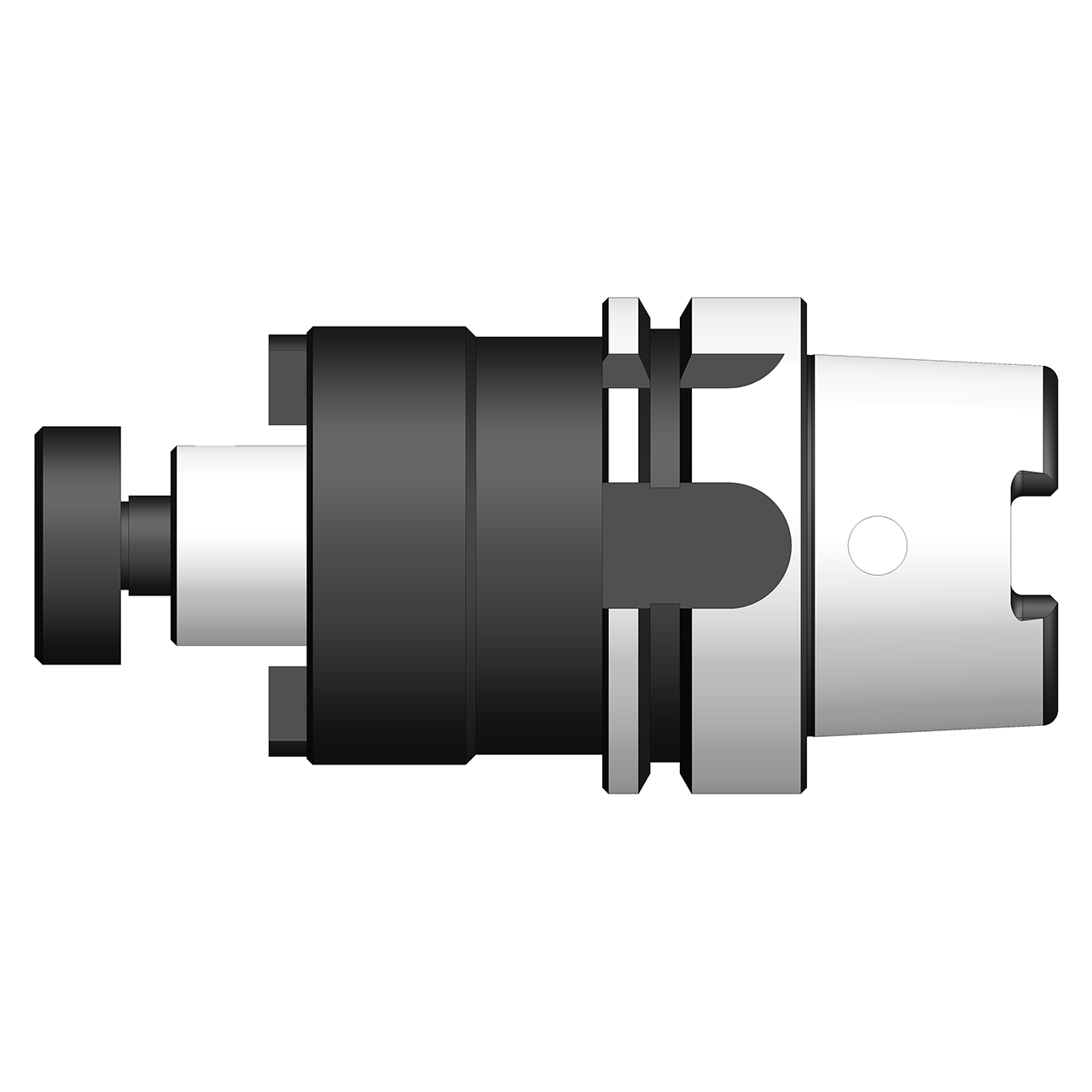

| Product Type | Shell Mill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Ultra-Dex
Taper Size:
HSK63A
Body Diameter (Decimal Inch):
3.3800"
Shoulder Length (Decimal Inch):
0.9400"
